PCIe-8620 CR ICP DAS PCI Express



PCIe-8620 CR

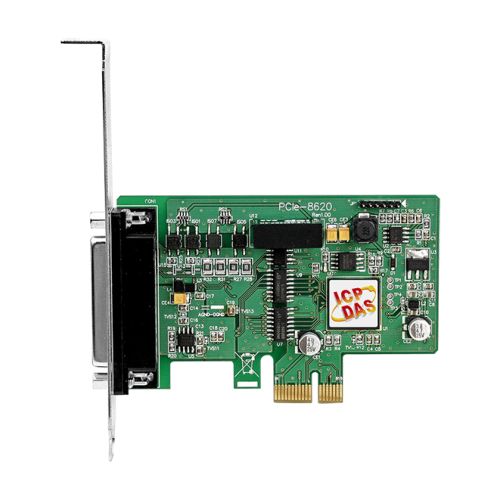

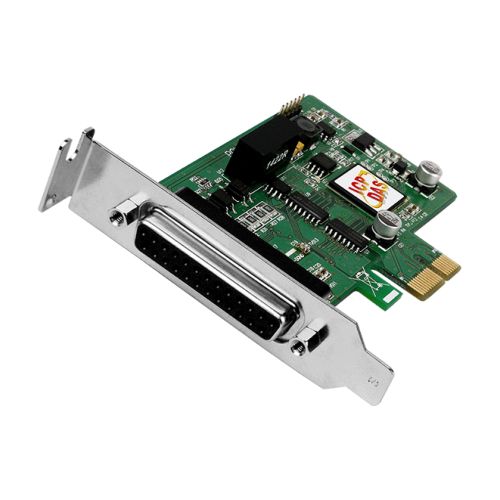

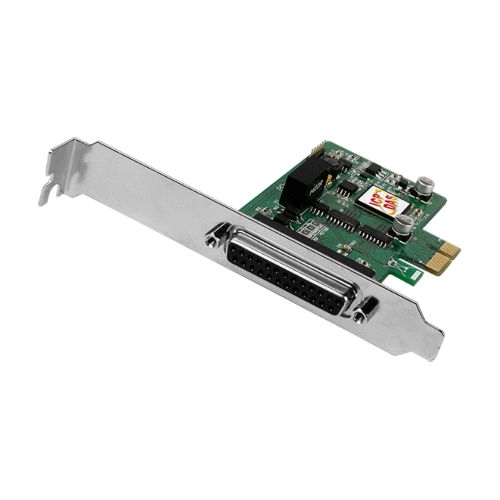

PCI Express, 200 kS/s, 8-ch, 16-bit Simultaneously Sampled Analog input Board with 4-ch Isolated DIO Includes one CA-PC25M D-Sub Connector and One Low-profile bracket



€ 337,05

(VAT excluded)

€ 411,20(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 411,20

Availability: 15 business days

SKU: 106304

Model: PCIe-8620 CR

Need Help?

The PCIe-8620/8622 is a powerful multifunction board based on the PCI Express. With a FIFO of 2048 samples, the maximum sampling rate of PCIe-862x Series is up to 200 kS/s with 8/16 16-bit A/D converters simultaneously sampling on each channel. The PCIe-862x Series has two 16-bit voltage output (D/A) channels, 4/12 digital input channels, 4/12 digital output channels, and two PWM output channels.
PCIe-8620/8622 supports more kinds of trigger modes for A/D conversion: software trigger, internal pacer trigger and external pacer trigger. The software trigger can acquire a sample whenever needed, while the internal pacer saves CPU loading by triggering the sampling at pre-programmed frequency. An external pacer can be used for triggering by external frequency source.

The PCIe-8620/8622 also includes an onboard Card ID switch that can be used to set a unique ID for each board so that they can be instantly recognized if two or more boards are installed in the same computer.

These cards support a variety of operating systems, such as DOS, Windows 2000, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. ICP DAS also provides a DLL and Active X control for the PCIe-8620/8622, together with sample programs in various languages, including Turbo C++, Borland C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, enabling help users to quickly and easily develop their custom applications.
PCIe-8620 CR: PCI Express, 200 kS/s, 16-bit, 8-channel Simultaneously Sampled Analog Input board and 4-channel Isolated DIO. (RoHS). Includes one CA-PC25M D-Sub Connector and One Low-profile bracket.

  • Supports Card ID (SMD Switch)
  • Digital Output Readback Function
  • 16-bit AD Converter, 200 kHz Sampling Rate for each channel
  • Built-in 2048-sample AD FIFO
  • Software Calibration
  • Supports PCI Express x 1, Full-profile or Low-profile
  • 4-channel Isolated DI and 4-channel Isolated DO
  • 8-channel Synchronous Sample & Hold AD
  • 8-Single-ended Analog Input Channels

Analog Input

Isolation Voltage: 2500 VDC (Bus-type)
Channels: 8 single-ended (Simultaneously)
A/D Converter: 16-bit, 5 µs conversion time
Sampling Rate: 200 kS/s
FIFO Size: 2048 samples
Over Voltage Protection: Continuous +/-35 Vp-p
Input Impedance: 10,000 MΩ/4pF
Triggers Modes: Software, Pacer, External
Data Transfer: Polling, Interrupt, DMA
Accuracy: 0.05 % of FSR ±1 LSB @ 25 °C, ± 10 V
Input Range: Gain: 1, 2 Bipolar Range: ±10 V, ±5 V

Digital Input

Channels: 4
Isolation Voltage: 2500 VDC
Compatibility: 5 V/TTL
Input Voltage: Logic 0: 0.8 V (Max.) ; Logic 1: 2.0 V (Min.)
Response Speed: 1.0 MHz (Typical)
Trigger Mode: Software
Data Transfer: Polling

Digital Output

Channels: 4
Isolation Voltage: 2500 VDC
Compratibility: 5 V/CMOS
Output Voltage: Logic 0: 0.4 V (max.) ; Logic 1: 2.4 V (min.)
Output Capability: Sink: 6 mA @ 0.33 V ; Source: 6 mA @ 4.77 V
DO Readback: Yes
Operation Mode: Static Update
Response Speed: 1.0 MHz (Typical)


Bus Type: PCI-Express x 1
Data Bus: 32-bit
Card ID: Yes (4-bit)
I/O Connector: Female DB25 x 1
Dimensions (L x W x D): Full-profile: 107 mm x 120 mm x 22 mm ; Low-profile: 107 mm x 80 mm x 22 mm
Power Consumption: 1 A @ +5 V (Max)
Operating Temp.: 0 ~ 60 °C
Storage Temp.: -20 ~ 70 °C
Humidity: 5 ~ 85% RH, non-condensing
