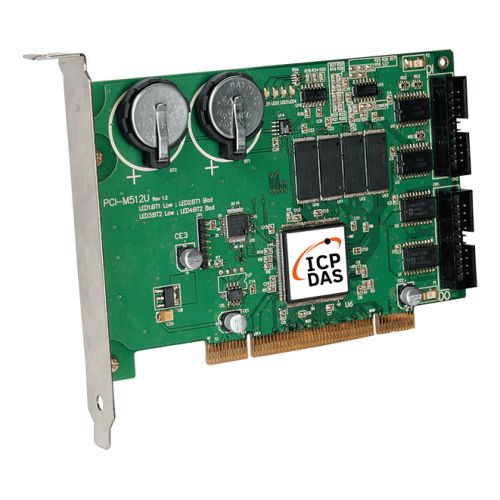

PCI-M512U CR ICP DAS Universal PCI Boards



Universal PCI, 512 KB SRAM Board with 16-ch Digital input, 16-ch DO



€ 209,15

(VAT excluded)

€ 255,16(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 255,16

Availability: 15 business days

SKU: 3655

Model: PCI-M512U CR

Need Help?

  • On-board 512 KB SRAM
  • Two Li-batteries, BT1 & BT2, for dual battery-backup the data of the SRAM
  • LED indicators for Li-batteries states: normal, low voltage, fault
  • 16-bit general purpose TTL-compatible D/O
  • 12-bit general purpose TTL-compatible D/I (DI4 ~ 15)
  • 4-bit battery status read back (DI0 ~ 3).
  • Universal PCI card, supports both 5 V and 3.3 V PCI bus.

The PCI-M512/PCI-M512U provides battery-backup 512 KB SRAM, 12-bit DI and 16-bit DO. In addition, the PCI-M512U supports both 5 V and 3.3 V PCI bus, while the PCI-M512 supports 5 V PCI bus only. The PCI-M512U (Universal PCI version) is designed as a drop-in replacement for the PCI-M512 (PCI version), so users can replace a PCI-M512 by a PCI-M512U directly without any software or driver modification.

Users can use the DB-16P to connect the input ports (CN2) for isolation purpose, or use DB-16R to interface to the output ports (CN1) for relay control.

The PCI-M512/PCI-M512U is equipped with two Li-batteries to maintain the content of the 512 KB SRAM when PC power loss occurs. The two Li-batteries can continue supplying power to the SRAM to retain the important data for 10 years. The two-battery design also makes it safe to replace new batteries without losing data; when one battery is taken out for replacing a new one, the other continues to provide power to the SRAM.

4 LED indicators on the board are provided for giving clear understanding of the battery states such as normal, low voltage or fault. The PCI-M512/PCI-M512U is an ideal solution for improving system reliability.


DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 98/NT/2000
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Dgital Input

Channels 12
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.4 MHz (Typical)

Digital Output

Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 1.4 MHz (Typical)


SRAM Size 512 KB
Li-Battery BT1 & BT2
Battery Status bits BT1 Low, BT1 Bad, BT2 Low, BT2 Bad(low voltage=2.3 V, bad voltage=2.1 V)
LED Indicators BT1 Low (Green), BT1 Bad (Red) BT2 Low (Green), BT2 Bad (Red)


Bus Type  3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit(DI/DO), 32-bit(Memory)
I/O Connector Male 20-bit ribbon x 2
Dimensions (L x W) 140 mm x 90 mm
Power Consumption 420 mA @ +5 V
Operating Temperature -20 ~ 60 °C
Storage Temperature -40 ~ 85 °C
Humidity 0 ~ 90% RH, non-condensing
