features and benefits

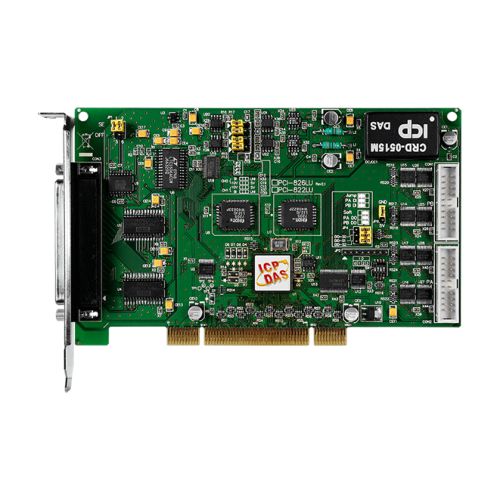

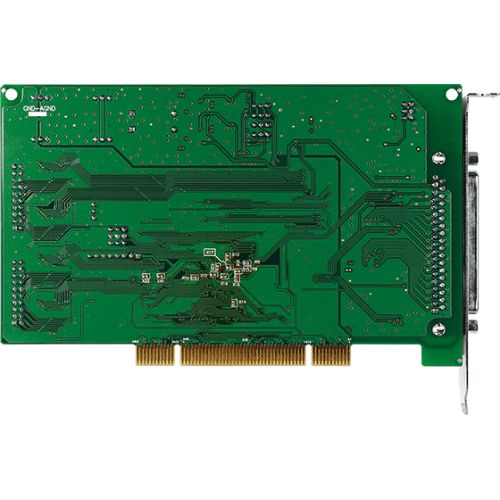

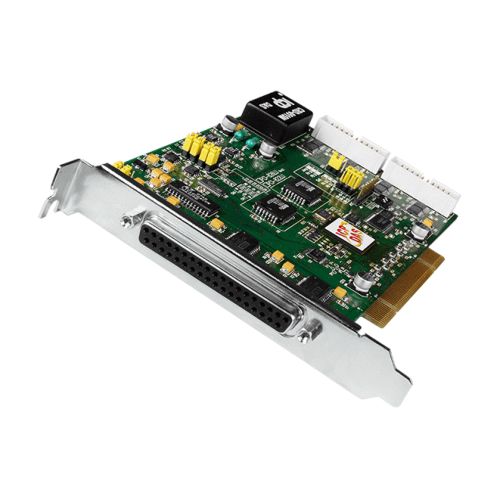

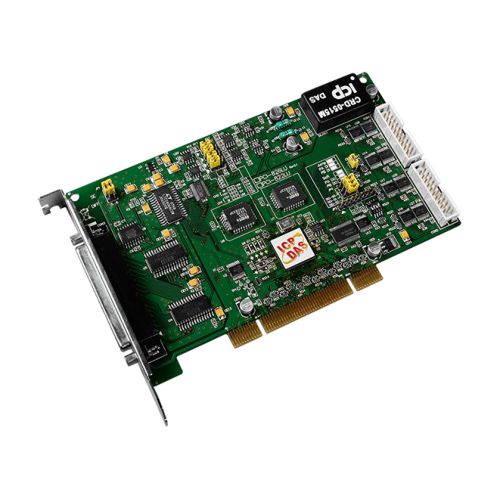

The PCI-826LU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions.
The PCI-826LU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus.
This card features a continuous, 250 k Samples/Sec 16-bit resolution A/D converter, 8 K samples hardware FIFO, 2-ch 16-bit D/A converter, 32-ch programmable digital I/O and DO read back.The PCI-826LU provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable.
The PCI-826LU is equipped with a high speed PGA featuring programmable gain controls (1, 2, 4, 8). The PCI-826LU has the Card ID switch and pull-high/pull-low resisters for DI on board.
Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-826LU cards in one computer.
The pull-high/pull-low resisters allow specifying the DI status; when the DI channels are unconnected, the DI status will remain in high or low status other than floating. The PCI-826LU provides two programmable trigger methods: software trigger and pacer trigger.
The A/D channel scan function of PCI-826LU is so amazing, we call it MagicScan.
The MagicScan controller takes out most works of getting A/D value such as select channel, set gain, settling time, trigger ADC and get data.
With the built-in MagicScan and interrupt features, it is effectively off-loading your CPU from the job.
Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 250 kS/s totally.
The PCI-826LU is suitable for high end applications.
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 32 Single-ended/16 Differential Analog Input Channels
- 16-bit 250 kS/s High-speed AD
- Built-in MagicScan Controller
- Supports Software-trigger and Pacer-trigger
- 8 K-sample Hardware FIFO
- 2-channel, 16-bit Analog Output
- 32-channel programmable DI/O
- Pull-high and Pull-low Resistors for DI Channels
- Supports Digital Output Status Readback (Register Level)
specifications
Hardware| Card ID | Yes (4-bit) |
|---|
| Connector | Female DB37 x 1 | 20-pin box header x 2 |
|---|
Analog Input| Channels | 32 single-ended/16 differential |
|---|
| Range | Gain: 1, 2, 4, 8 | Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | 0.05 % of FSR ±1 LSB @ 25 °C, ±10 V |
|---|
| Sampling Rate | 250 kS/s. Max. |
|---|
| Overvoltage Protection | Continuous ±35 Vp-p |
|---|
| Zero Drift | 15 ppm/°C of FSR |
|---|
| FIFO Size | 8192 samples |
|---|
| Trigger Mode | Software, Pacer |
|---|
| Data Transfer | Polling, Interrupt |
|---|
Analog Output| Channels | 2 |
|---|
| Range | -5 V ~ 5 V , -10 V ~ 10 V, 0 ~ 10 V, 0 ~ 5 V |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | ±6 LSB |
|---|
| Response Time | 250 KHz (Typical) |
|---|
| Voltage Output Capability | ±5 mA |
|---|
| Slew Rate | 0.7 V/μs |
|---|
| Operation Mode | Static Update |
|---|
Digital Input| Channels | 32 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| Pull-high/Pull-low Resistors | Yes |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 32 (Bi-Direction) |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 40 mA | Source: 20 mA |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| DO Readback | Yes |
|---|
PC Bus| Type | 3.3 V/5 V Universal PCI, 32-bit |
|---|
| Data Bus | 16-bit |
|---|
Power| Consumption | 1 A @ +5 V (Max.) |
|---|
Mechanical| Dimensions (mm) | 150 X 170 X 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
