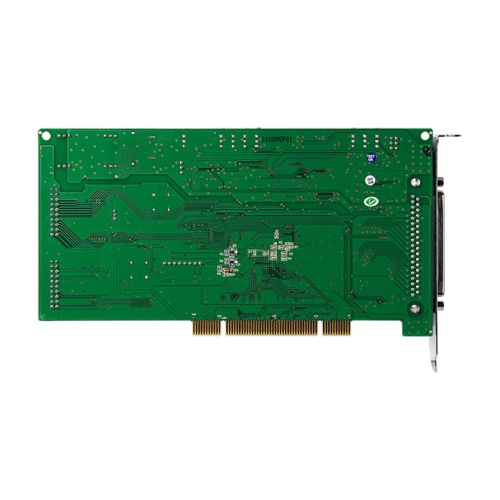

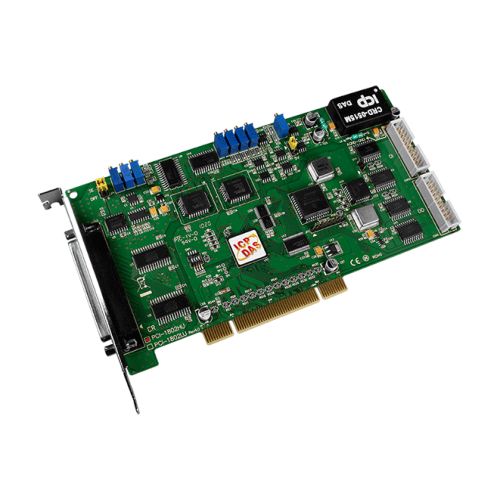

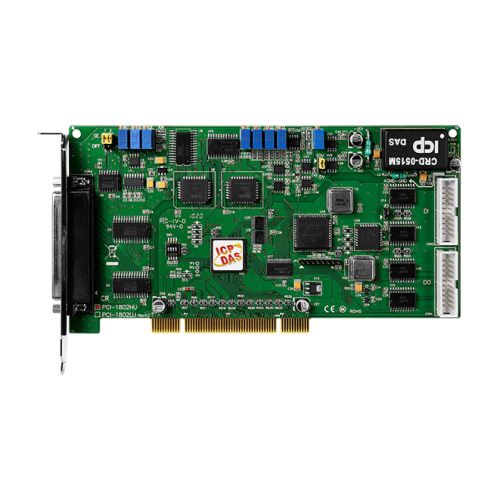

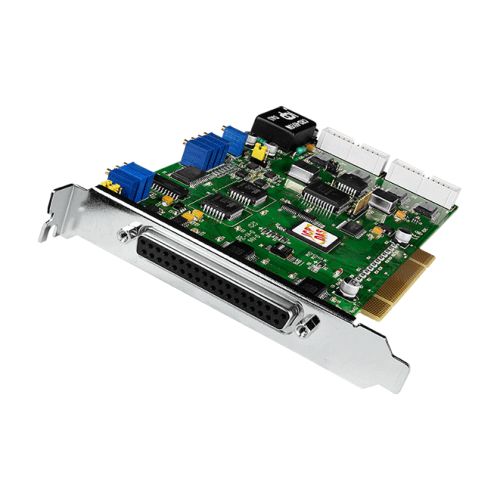

PCI-1802HU CR ICP DAS Universal PCI Multifunction

PCI-1802HU CR ICP DAS

PCI-1802HU CR

Universal PCI, 44k S/s, 32-ch, 12-bit AI Multifunction Board (RoHS) Includes one CA-4002 D-Sub connector

Quantity:

Price

€ 714,75

(VAT excluded)

€ 872,00(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 872,00

Availability: 15 business days

SKU: 4687

Model: PCI-1802HU CR

Need Help?


features and benefits

The PCI-1802HU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus.
All the members in the PCI-1800 family have the same architecture; they feature a continuous A/D acquisition function of up to 44 kHz for high gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels.
The PCI-1802 series provides 32 single-ended or 16 differential inputs.
In addition, an amazing A/D channel scan function called ΩMagicScanΩ is provided for users to easily implement multi-channel analog data acquisition applications.
The specific MagicScan controller takes out most works of getting A/D value such as selecting channel, setting gain, settling time, triggering ADC and getting data.
Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 44 kS/s totally. The PCI-1802 series cards are equipped with 8 K samples hardware FIFO to reduce data overflow issues under multi-tasking environment like Windows and Linux. The PCI-1802HU has a Card ID switch with which users can recognize the board by the ID via software when using two or more PCI-1802HU cards in one computer.
The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken. The cards support various OS versions, such as Linux, DOS, Windows.
DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

  • Universal PCI (3.3 V/5 V) Interface
  • Supports Card ID (SMD Switch)
  • 2-channel, 12-bit Analog Output
  • 16-channel 5 V/TTL Digital Output
  • 16-channel 5 V/TTL Digital Input
  • Pull-high and Pull-low Resistors for DI Channels
  • 32 Single-ended/16 Differential Analog Input Channels
  • 12-bit, 44 kS/s AD Converter
  • Built-in MagicScan Controller
  • Internal Trigger: Software-trigger, Pacer-trigger
  • External Trigger: Post-trigger, Pre-trigger, Middle-trigger
  • High-speed data transfer rate up to 2.7 M words/sec.

specifications

Hardware
Card IDYes (4-bit)
ConnectorFemale DB37 x 1Male 20-bit ribbon x 2
Analog Input
Channels32 single-ended/16 differential
RangeGain: 0.5, 1, 5, 10, 50, 100, 500, 1000Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 VUnipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution12-bit
Accuracy0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate330 kS/s. Max.
Input Impedance10 MΩ/6 pF
Overvoltage ProtectionContinuous ±35 Vp-p
Zero Drift±2 ppm/°C of FSR
FIFO Size8192 samples
Trigger ModeSoftware, Internal programmable pacer, External (5 V/TTL)
Data TransferPolling
Analog Output
Channels2
RangeBipolar:±5 V, ±10 V
Resolution12-bit
Accuracy0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V
Response Time1.0 MHz (Typical)
Voltage Output Capability±5 mA
Slew Rate8.33 V/μs
Operation ModeSoftware
Digital Input
Channels16
Type5 V/TTL
ON Voltage Level2.0 V Min.
OFF Voltage Level0.8 V Max.
Response Speed1.0 MHz (Typical)
Trigger ModeStatic Update
Digital Output
Channels16
Type5 V/TTL
Operation ModeStatic Update
Load VoltageLogic 0: 0.4 V Max.Logic 1: 2.4 V Min.
Load CurrentSink: 2.4 mA @ 0.8 VSource: 0.8 mA @ 2.0 V
Response Speed1.0 MHz (Typical)
Timer/Counter/Frequency
Channels3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type5 V/TTL
Resolution16-bit
Input Frequency10 MHz Max.
Reference ClockInternal: 8 MHz
PC Bus
Type3.3 V/5 V Universal PCI,32-bit, 33 MHz
Data Bus16-bit
Power
Consumption300 mA @ +5 V
Mechanical
Dimensions (mm)105 x 200 x 22 (W x L x D)
Environment
Operating Temperature0 ~ +60°C
Storage Temperature-20 ~ +70°C
Humidity5 ~ 85% RH, Non-condensing
