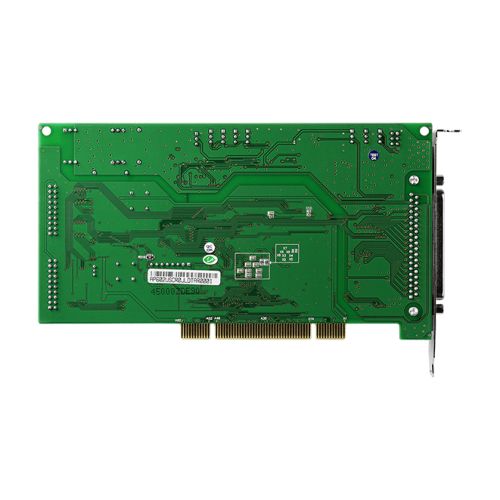

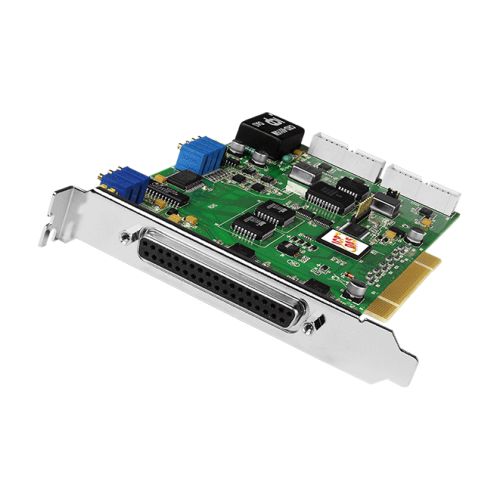

PCI-1602U CR
Universal PCI, 100 kS/s, 32-ch, 16-bit Analog input Multifunction Board (8 K word FIFO)
- Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
- Card ID function
- Pull-high/ pull-low resistors for DI
- 16-channels digital Input
- 16-channels digital output
- 2 channels, 12-bit analog output
- 16-bit high resolution, 100 k/Ss (200 kS/s for F version) A/D converter
- 32 single-ended/16 differential analog inputs
- Programmable low gain:1/2/4/8
- Built-in 8 k WORD FIFO
- Built-in MagicScan controller
- Support internal/external trigger
- Three external triggers: post-trigger, pre-trigger, middle-trigger
The PCI-1602U/1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602U/1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 100 kS/s (200 kS/s for F version) 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch digital input and 16-ch digital output. The PCI-1602U/1602FU provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8). The PCI-1602U/FU are fully compatible with the PCI-1602/F, and users can replace the PCI-1602/F by the PCI-1602U/FU directly without software/driver modification.
The PCI-1602U/1602FU has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602U/1602FU cards in one computer. The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.
The PCI-1602U/1602FU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.
ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).
Interface
Bus Universal PCI
Analog Input
Analog Input Channels 32 single-ended/16 differential
Voltage Range - -
Sensor Type Software, Internal programmable pacer, External (5 V/TTL compatible)
Current Range - -
Resolution 16-bit, 2 μs conversion time
Sampling Rate 100 kS/s. max.
Analog Output
Analog Output Channels 2
Voltage Range Bipolar:+/5 V, +/-10 V
Current Range +/- 5 mA
Resolution 12-bit
Digital Input
Isolation Voltage - -
Digital Input Channels 16
Signal Type 5 V/TTL
On Voltage Level 2.0 V min.
Off Voltage Level 0.8 V max.
Time Counter
Counter Channels 3 (Independent x 1, Internal pacer x 1, External pacer x 1)
Signal Type 5 V/TTL
Resolution 16-bit
Digital Output
Digital Output Channels 16
Signal Type 5 V/TTL
Current Sink: 2.4 mA, Source 0.8 mA
Voltage Sink: 0.8 V, Source: 2.0 V
Installation
Dimensions (WxLxH) 105 x 188 x 22 mm (WxHxD)
Operating Temperature 0 to 70°C
I/O Connector Type Female DB37 x 1 Male 20-bit ribbon x 2
