features and benefits

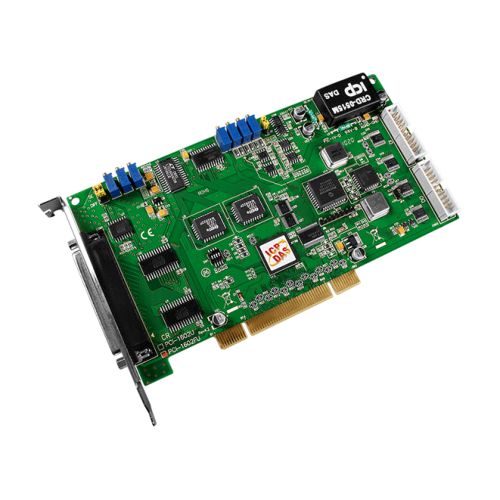

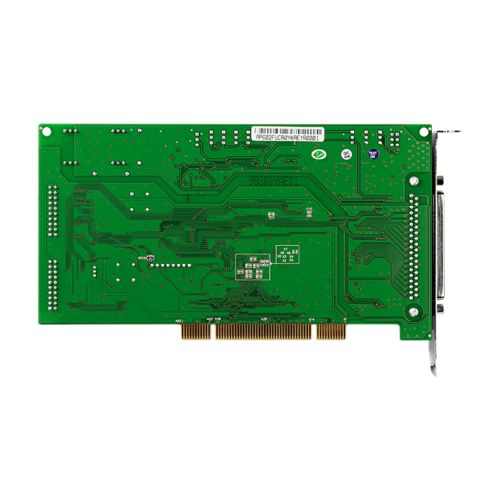

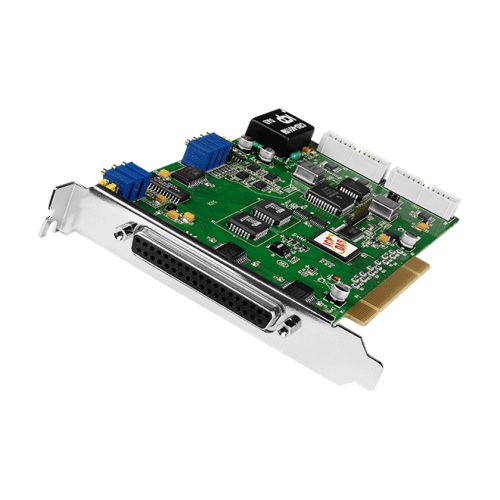

The PCI-1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions.
The PCI-1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 200 kS/s 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch DI and 16-ch DO.
The PCI-1602FU provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8). The PCI-1602FU has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602FU cards in one computer.
The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken. The cards support various OS versions, such as Linux, DOS, Windows.
DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 2-channel, 12-bit Analog Output
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
- 32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 200 kS/s AD Converter
- Built-in MagicScan Controller
- Internal Trigger: Software-trigger, Pacer-trigger
- External Trigger: Post-trigger, Pre-trigger, Middle-trigger
- High-speed data transfer rate up to 2.1 M words/sec
specifications
Hardware| Card ID | Yes (4-bit) |
|---|
| Connector | Female DB37 x 1 | Male 20-bit ribbon x 2 |
|---|
Analog Input| Channels | 32 single-ended/16 differential |
|---|
| Range | Gain: 1, 2, 4, 8 | Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | 0.01 % of FSR ±1 LSB @ 25 °C, ±10 V |
|---|
| Sampling Rate | 200 kS/s. Max. |
|---|
| Input Impedance | 10 MΩ/6 pF |
|---|
| Overvoltage Protection | Continuous ±35 Vp-p |
|---|
| Zero Drift | ±4 ppm/°C of FSR |
|---|
| FIFO Size | 8192 samples |
|---|
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
|---|
| Data Transfer | Polling |
|---|
Analog Output| Channels | 2 |
|---|
| Range | Bipolar:±5 V, ±10 V |
|---|
| Resolution | 12-bit |
|---|
| Accuracy | 0.06% of FSR ±1 LSB @ 25 °C, ±10 V |
|---|
| Response Time | 1.0 MHz (Typical) |
|---|
| Voltage Output Capability | ±5 mA |
|---|
| Slew Rate | 8.33 V/μs |
|---|
| Operation Mode | Static Update |
|---|
Digital Input| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| ON Voltage Level | 2.0 V Min. |
|---|
| OFF Voltage Level | 0.8 V Max. |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
| Trigger Mode | Static Update |
|---|
Digital Output| Channels | 16 |
|---|
| Type | 5 V/TTL |
|---|
| Operation Mode | Static Update |
|---|
| Load Voltage | Logic 0: 0.4 V Max. | Logic 1: 2.4 V Min. |
|---|
| Load Current | Sink: 2.4 mA @ 0.8 V | Source: 0.8 mA @ 2.0 V |
|---|
| Response Speed | 1.0 MHz (Typical) |
|---|
Timer/Counter/Frequency| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
|---|
| Type | 5 V/TTL |
|---|
| Resolution | 16-bit |
|---|
| Input Frequency | 10 MHz Max. |
|---|
| Reference Clock | Internal: 8 MHz |
|---|
PC Bus| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
|---|
| Data Bus | 16-bit |
|---|
Power| Consumption | 300 mA @ +5 V |
|---|
Mechanical| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
|---|
Environment| Operating Temperature | 0 ~ +60°C |
|---|
| Storage Temperature | -20 ~ +70°C |
|---|
| Humidity | 5 ~ 85% RH, Non-condensing |
|---|
