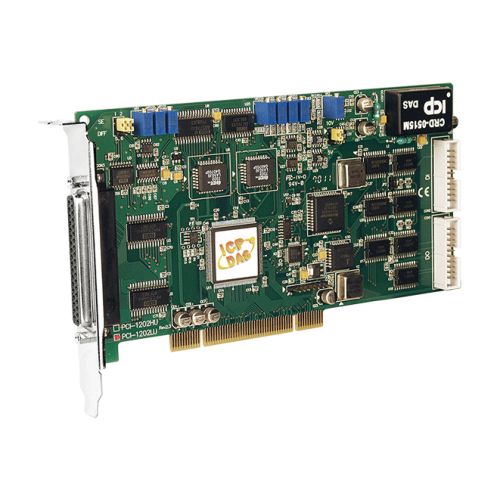

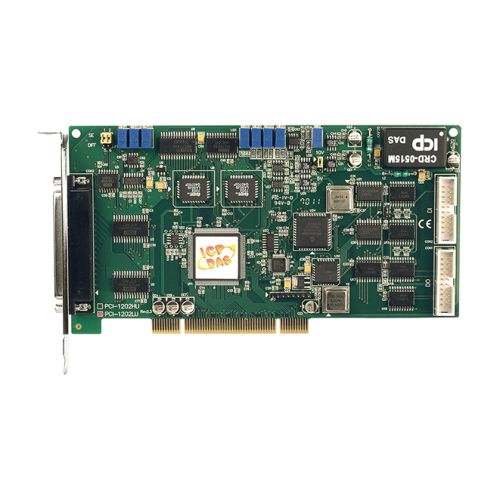

PCI-1202LU CR ICP DAS Universal PCI Multifunction

PCI-1202LU CR ICP DAS

PCI-1202LU CR

Universal PCI, 110 kS/s, 32-ch, 12-bit Analog input Multifunction Board (1 K word FIFO)

Quantity:

Price

€ 436,36

(VAT excluded)

€ 532,36(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 532,36

Availability: 15 business days

SKU: 3666

Model: PCI-1202LU CR

Need Help?


  • 12-bit 110 kHz A/D converter
  • 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
  • The total sampling rate is 110 K samples/s for low gain model and 40 K samples/s for high gain model.
  • Three external triggers: post-trigger, pre-trigger, middle-trigger
  • 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate.
  • PCI-1202L/LU provides programmable low gain: 0.5, 1, 2, 4, 8.
  • PCI-1202H/HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
  • Internal / external trigger.
  • Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)
  • Universal PCI card, supports both 5 V and 3.3 V PCI bus.
  • Digital input port can be set to pull-high or pull-low.

The PCI-1202 series is a family of high performance data acquisition board. It features a continuous, 110 kHz for low gain (40 kHz for high gain), gap-free data acquisition under DOS. The PCI-1202 family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI-1202 series features " Magic Scan" function, M-function, X-function, and Continuous Capture function.

The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PCI-1202L/H PCI card supports 5 V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version). Compared with the PCI version cards, the PCI-1202LU/HU add new designs of D/I pull-high/low and Card-ID switch. The PCI-1202LU/HU cards are designed as drop-in replacements for the PCI-1202L/H cards for RoHS reason, in other words, the PCI version PCI-1202 card can be replaced with the Universal PCI version one without software modification.

The PCI-1202LU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.

The PCI-1202LU/HU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.

ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).



Interface

Bus Universal PCI


Analog Input

Analog Input Channels 32 single-ended/16 differential
Voltage Range - -
Sensor Type Software, Internal programmable pacer, External (5 V/TTL compatible)
Current Range - -
Resolution 12-bit, 8.5 μs conversion time
Sampling Rate 110 kS/s. max.


Analog Output

Analog Output Channels 2
Voltage Range DC: +30 V for one channel @ 100% duty
Current Range DC:600 mA for one channel @ 100% duty
Resolution 12-bit


Digital Input

Isolation Voltage - -
Digital Input Channels 16
Signal Type 5 V/TTL
On Voltage Level 2.0 V min.
Off Voltage Level 0.8 V max.


Time Counter

Counter Channels 16
Signal Type 5 V/TTL
Resolution 16-bit


Digital Output

Digital Output Channels 16
Signal Type 5 V/TTL
Current Sink: 2.4 mA, Source 0.8 mA
Voltage Sink: 0.8 V, Source: 2.0 V


Installation

Dimensions (WxLxH) 105 x 196 x 22 mm
Operating Temperature 0 to 70°C
I/O Connector Type Female DB37 x 1, Male 20-bit ribbon x 2
