PCI-1202HU/S CR ICP DAS Universal PCI Multifunction

PCI-1202HU/S CR ICP DAS

PCI-1202HU/S CR

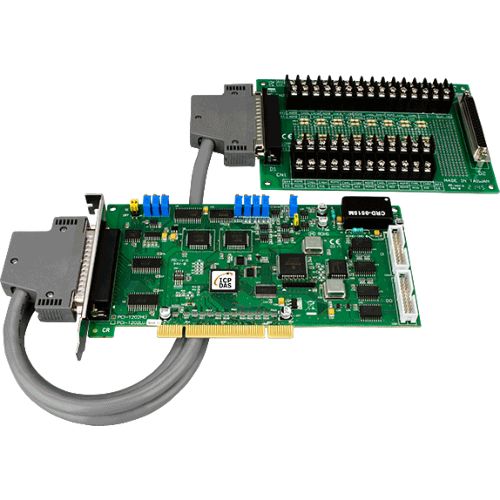

Universal PCI, 44 kS/s, 32-ch, 12-bit Analog input Multifunction Board, Includes one DB-1825 Daughter Board. (1 K word FIFO)

Quantity:

Price

€ 487,53

(VAT excluded)

€ 594,79(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 594,79

Availability: 15 business days

SKU: 3665

Model: PCI-1202HU/S CR

Need Help?


  • 12-bit 110 kHz A/D converter
  • 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
  • The total sampling rate is 110 K samples/s for low gain model and 40 K samples/s for high gain model.
  • Three external triggers: post-trigger, pre-trigger, middle-trigger
  • 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate.
  • PCI-1202L/LU provides programmable low gain: 0.5, 1, 2, 4, 8.
  • PCI-1202H/HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
  • Internal / external trigger.
  • Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)


The PCI-1202 series is a family of high performance data acquisition board. It features a continuous, 110 kHz for low gain (40 kHz for high gain), gap-free data acquisition under DOS. The PCI-1202 family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI-1202 series features " Magic Scan" function, M-function, X-function, and Continuous Capture function.

The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PCI-1202L/H PCI card supports 5 V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version). Compared with the PCI version cards, the PCI-1202LU/HU add new designs of D/I pull-high/low and Card-ID switch. The PCI-1202LU/HU cards are designed as drop-in replacements for the PCI-1202L/H cards for RoHS reason, in other words, the PCI version PCI-1202 card can be replaced with the Universal PCI version one without software modification.

The PCI-1202LU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.

The PCI-1202LU/HU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.

ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).

APPLICATIONS

- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.

SOFTWARE

DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.
