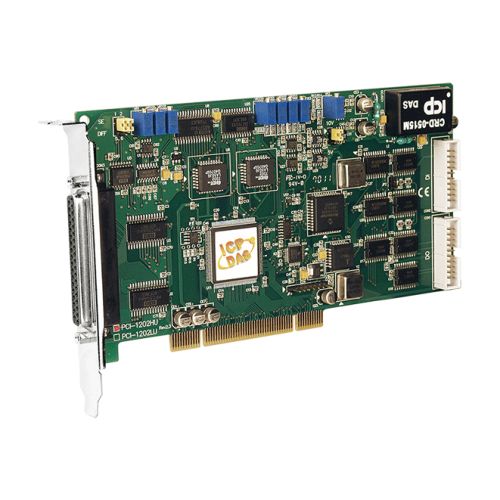

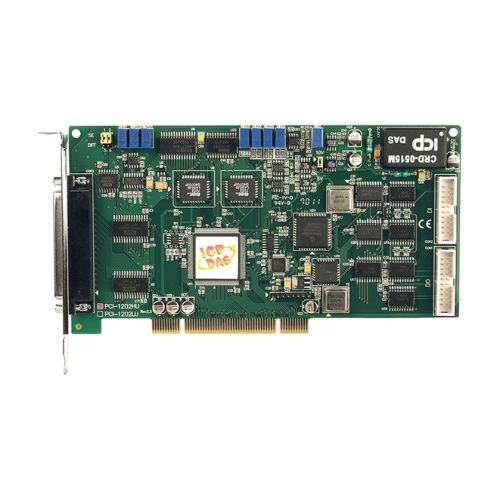

PCI-1202HU CR ICP DAS Universal PCI Multifunction



Universal PCI, 44 kS/s, 32-ch, 12-bit Analog input Multifunction Board (1 K word FIFO)



€ 458,94

(VAT excluded)

€ 559,91(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 559,91

Availability: 15 business days

SKU: 3664

Model: PCI-1202HU CR

Need Help?

  • 12-bit 110 kHz A/D converter
  • 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
  • The total sampling rate is 110 K samples/s for low gain model and 40 K samples/s for high gain model.
  • Three external triggers: post-trigger, pre-trigger, middle-trigger
  • 16 digital input and 16 digital output channels with 2 M words/s high speed data transfer rate.
  • PCI-1202L/LU provides programmable low gain: 0.5, 1, 2, 4, 8.
  • PCI-1202H/HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
  • Internal / external trigger.
  • Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)

The PCI-1202 series is a family of high performance data acquisition board. It features a continuous, 110 kHz for low gain (40 kHz for high gain), gap-free data acquisition under DOS. The PCI-1202 family has the same hardware architecture as PCI-1802, and provides 32-channel single-ended or 16-channel differential analog inputs. Like the PCI-1802 family, the PCI-1202 series features " Magic Scan" function, M-function, X-function, and Continuous Capture function.

The PCI-1202LU/HU Universal PCI card supports both 5 V and 3.3 V, while the PCI-1202L/H PCI card supports 5 V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version). Compared with the PCI version cards, the PCI-1202LU/HU add new designs of D/I pull-high/low and Card-ID switch. The PCI-1202LU/HU cards are designed as drop-in replacements for the PCI-1202L/H cards for RoHS reason, in other words, the PCI version PCI-1202 card can be replaced with the Universal PCI version one without software modification.

The PCI-1202LU/8K cards are equipped with 8 K samples hardware FIFO that reduces data overflow issues under multi-tasking environment like Windows and Linux.

The PCI-1202LU/HU cards support Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows XP/2003/2008/Vista/7. The SDK of the I/O cards provides DLL, Active X control, and sample programs with source code for users to implement application programs quickly and easily. The demo programs with source code in Turbo C, Borland C, Microsoft C, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided.

ICP DAS discontinues the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contact us for OEM/ODM project if you are interested in customized version (or /NDA model).


- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.


DOS Lib and TC/BC/MSC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
LabVIEW toolkit for Windows.
Driver for Linux.

Analog Input

Channels 32 single-ended/16 differential
A/D Converter 12-bit, 8.5 μs conversion time
Sampling Rate 110 kS/s. max.
FIFO Size 1024 samples
Over voltage Protection Continuous +/-35 Vp-p
Input Impedance 10 MΩ/6 pF
Trigger Modes Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer Polling
Accuracy 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift +/- 4 ppm/°C of FSR

Analog Output

Channels 2
Resolution 12-bit
Accuracy 0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V
Output Range DC:600 mA/+30 V for one channel @ 100% duty
Output Driving +/- 5 mA
Slew Rate 8.33 V/μs
Output Impedance 0.1 Ω max.
Operating Mode Software

Dgital Input

Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 2.7 MHz (Typical)

Digital Output

Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 2.7 MHz (Typical)


Channels 3(Independent x 1/Internal pacer x 1/External pacer x 1)
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 8 MHz


Bus Type  3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID  Yes(4-bit) for Version 4.0 or above
I/O Connector Female DB37 x 1
Male 20-bit ribbon x 2
Dimensions (L x W x D) 196 mm x 105 mm x 22 mm
Power Consumption 300 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
