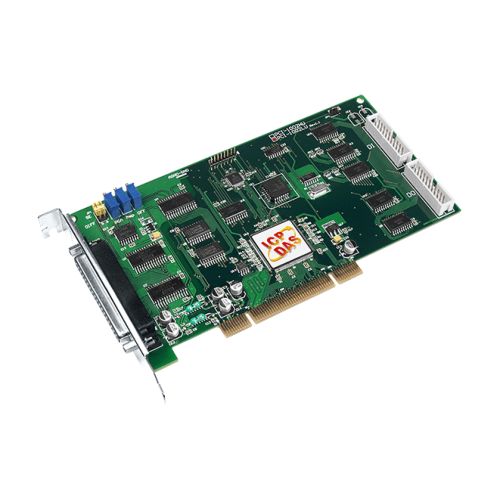

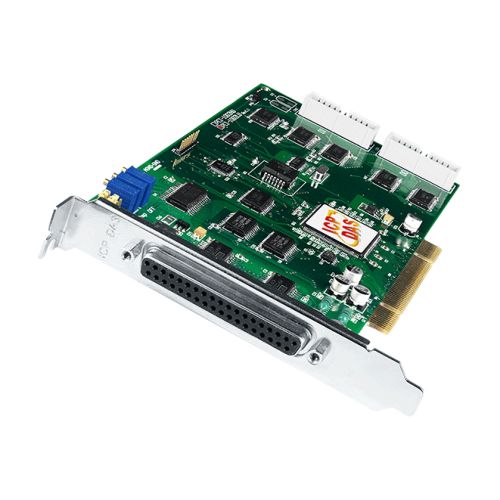

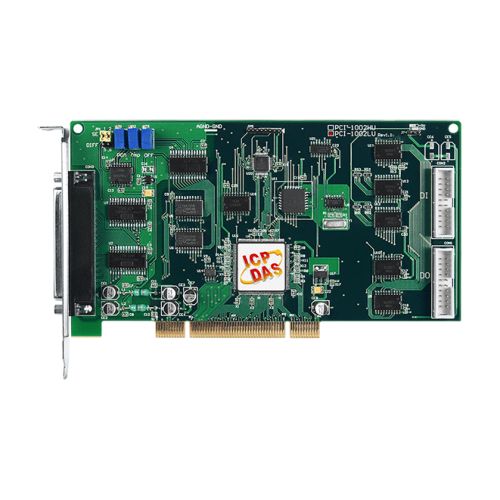

PCI-1002LU CR
Universal PCI, 110 kS/s, 32-ch, 12-bit Analog input Multifunction Board
- Universal PCI card, supports both 5 V and 3.3 V PCI bus.
- 12-bit resolution, 100 kS/s high-speed AD converter.
- 32 single-ended/ 16 differential inputs
- The max. sampling rate is low-gain 110 kS/s or high-gain 44 kS/s.
- 16 digital input / 16 digital output channels
- PCI-1002LU: programmable low gain:1, 2, 4, 8,
- PCI-1002HU: programmable high gain:1, 10, 100, 1000.
- Internal / external trigger.
- Half size board
- Digital input port can be set to pull-high or pull-low(PCI-1002 LU/HU only).
The PCI-1002LU/HU universal PCI card supports 3.3 V/5 V PCI bus and is the new generation product that ICP DAS provides to meet RoHS compliance. The new PCI-1002LU/HU (universal PCI) are totally compatible with the PCI-1002L/H (PCI), and users can replace the PCI-1002L/H directly by the PCI-1002LU/HU without software/driver modification. The PCI-1002 series is a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels. The PCI-1002 series supports various OS such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/2003/Vista/7. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.
Interface
Bus Universal PCI
Analog Input
Analog Input Channels 32 single-ended/16 differential
Voltage Range ---
Sensor Type Software, Internal programmable pacer, External (5 V/TTL compatible)
Current Range ---
Resolution 12-bit, 8 μs Conversion time
Sampling Rate 110 kS/s. max.
Analog Output
Analog Output Channels ---
Voltage Range ---
Current Range ---
Resolution ---
Digital Input
Isolation Voltage 3750 Vrms
Digital Input Channels 16
Signal Type 5 V/TTL
On Voltage Level 2.0 V min.
Off Voltage Level 0.8 V max.
Time Counter
Counter Channels 3 (Independent x 1/ Internal pacer x 1/ External pacer x 1)
Signal Type 5 V/TTL
Resolution 16-bit
Digital Output
Digital Output Channels 16
Signal Type 5 V/TTL
Current 0.8 ~ 2.4 mA
Voltage 0.4 ~ 2.4 V
Installation
Dimensions (WxLxH) 188 x 105 x 22 mm (WxHxD)
Operating Temperature 0 ~ 60 °C
I/O Connector Type Female DB37 x 1, 20-pin box header x 2
