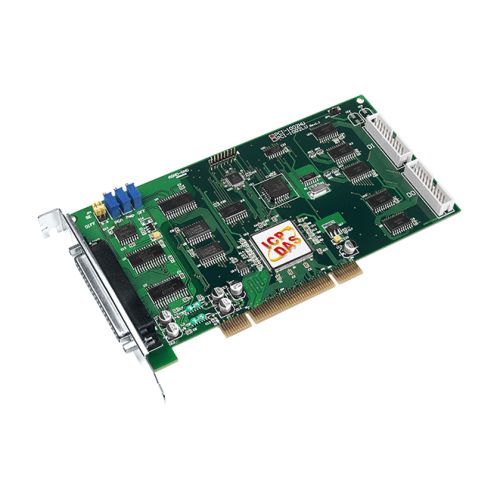

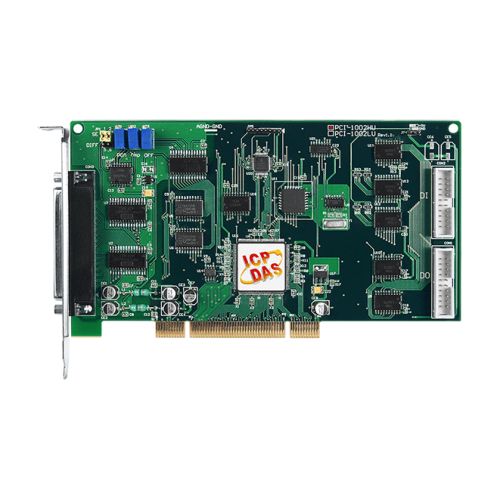

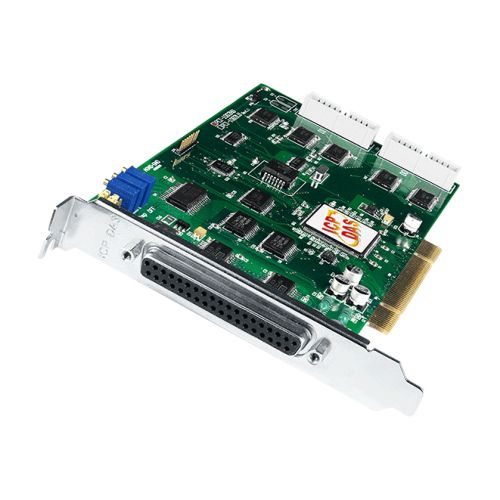

PCI-1002HU CR
Universal PCI, 44 kS/s, 32-ch, 12-bit Analog input Multifunction Board
- 12-bit resolution, 100 kS/s high-speed AD converter.
- 32 single-ended/ 16 differential inputs.
- The max. sampling rate is low-gain 110 kS/s or high-gain 44 kS/s.
- PCI-1002LU/PEX-1002L: programmable low gain: 1, 2, 4, 8.
- PCI-1002HU/PEX-1002H: programmable high gain: 1, 10, 100, 1000.
- 16 digital input/16 digital output channels.
- Internal/external trigger.
- Half size board.
- Digital input port can be set to pull-high or pull-low.
[PCI-1002LU/HU] - Universal PCI card, supports the +5 V and +3.3 V PCI Bus.
The PCI-1002LU/HU and PEX-1002LH cards are the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-1002L/H. Users can replace the PCI-1002L/H by the PCI-1002LU/HU and PEX-1002L/H directly without software/driver modification.
The PCI-1002LU/HU supports 3.3 V/5 V PCI bus, while the PEX-1002L/H supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.
The PEX-1002L/H also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L/H cards in one computer. The PCI-1002LU/HU and PEX-1002L/H provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
APPLICATIONS
Laboratory automation
Production test
Sensor interface
SOFTWARE
DOS Lib and BC sample program (with source codes)
DLL and OCX SDK for Windows 95/98/NT/2K.
DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes are included.
LabVIEW toolkit for Windows.
Driver for Linux.
Analog Input
Channels 32 single-ended/16 differential
A/D Converter 12-bit, 8 μs Conversion time
Sampling Rate 44 kS/s. max.
FIFO Size N/A
Over voltage Protection Continuous +/-35 Vp-p
Input Impedance 10 MΩ/6 pF
Trigger Modes Software, Internal programmable pacer, External (5 V/TTL compatible)
Data Transfer Polling, Interrupt
Accuracy 0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V
Zero Drift +/- 4 ppm/°C of FSR
Dgital Input
Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 1.0 MHz (Typical)
Digital Output
Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 2.4 mA
Source: 0.8 mA
Response Speed 1.0 MHz (Typical)
Timer/Counter
Channels 3(Independent x 1/Internal pacer x 1/External pacer x 1)
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 4 MHz
General
Bus Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID No
I/O Connector Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 188 mm x 105 mm x 22 mm
Power Consumption 960 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
