NSM-316G CR ICP DAS Unmanaged

The NSM-316G is 16-port unmanaged full Gigabit Ethernet switch, Energy Efficient Ethernet™ (EEE) , Port’s loss link Break Alarm, Power loss Alarm.
NSM-316G CR: 16-PORT GBE Ethernet Unmanaged Switch (RoHS)

• Full Gigabit Ethernet ports
• Nonblocking architecture, line rate for all packet sizes
• Fully integrated packet buffer
• DIP switch alarm setting for Port's break
• Power loss alarm
• Supports 9216 Byte jumbo frames
• Supports Auto Negotiation and Auto MDI/MDI-X
• Supports Dual +12 ~ 48 VDC power input and 1 relay output
• Supports operating temperatures from – 40 ~ +75°C
• DIN-Rail, Wall Mounting (optional)

Technology

Standards:

• IEEE 802.3 for 10Base-T
• IEEE 802.3u for 100Base-TX
• IEEE 802.3ab for 1000Base-T
• IEEE 802.3x for Flow Control
• Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity

Processing Type: Store & forward, wire speed switching
MAC Addresses: 8K
Packet Buffer Memory: 512 KByte
Jumbo Frames: 9216 Byte
Flow Control: IEEE802.3x flow control, back pressure flow control

Interface

RJ-45 Ports: 10/100/1000 BaseT(X), 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection

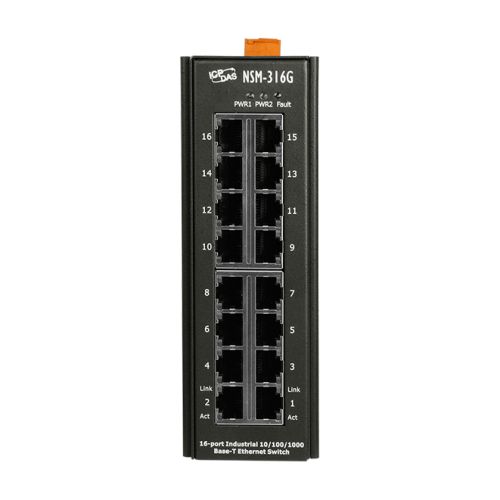

LED Indicators: PWR1, PWR2, FAULT, Link, Act
Ethernet Isolation: 1500 Vrms 1 minute
DIP Switch: Ports loss link alarm mask
Console Port: Debugging, Monitoring, Setting

Power Input

Redundant Input Range: Flexible input +24/+48 VDC Nominal. (+12 ~ +48 VDC)
Power Consumption:

• 0.16A @ 48VDC Idle without loading; 0.2A @ 48VDC with full loading (0.12 W per ports)
• 0.31A @ 24VDC idle without loading; 0.39A @ 24VDC with full loading (0.12 W per ports)

Alarm Contact: One relay output with current carrying capacity of 1A @ 30 VDC
Protection: Power reverse polarity protection
Connector: 6-Pin Removable Terminal Block (Power & Relay)

Mechanical

Chassis: Metal with an IP30 ingress protection rating
Dimension (W x L x H): 51 mm x 154 mm x 118 mm

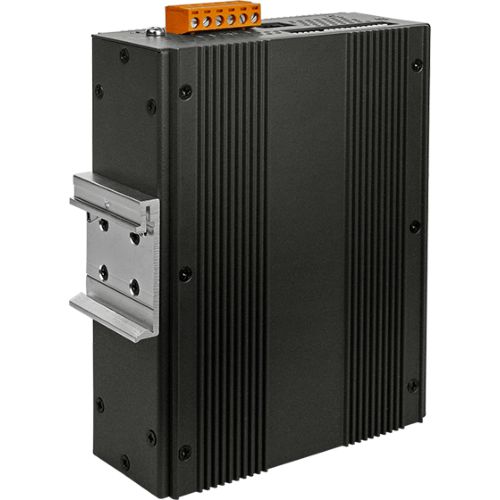

Installation: DIN-Rail or Wall Mounting (with optional kit)

Environmental

Operating Temp.: -40 °C ~ + 75 °C (-40 °F to 167 °F)
Storage Temp.: -40 °C ~ + 85 °C (-40 °F to 185 °F)
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
