NSM-210C CR ICP DAS Unmanaged

• Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
• Supports Auto Negotiation and Auto MDI/MDI-X
• Supports Dual +12 ~ 48 VDC power input and 1 relay output
• Supports operating temperatures from -25 ~ +75°C
• Power loss alarm

INTRODUCTION

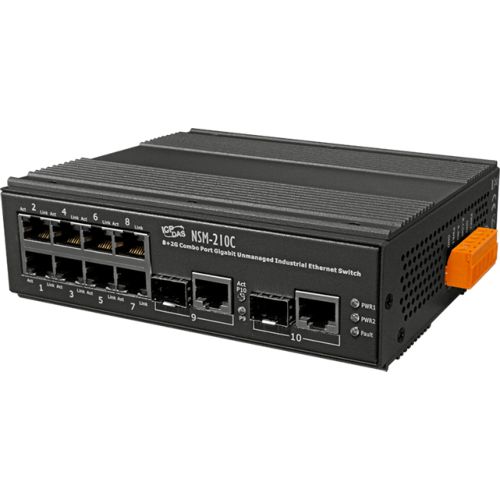

The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.

SPECIFICATIONS

Technology
Standards: IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

MAC Addresses: 8K
Frame Buffer Memory: 1 Mbit
Flow Control: IEEE 802.3x flow control, back pressure flow control

Interface
RJ-45 Ports: 8x 10/100BaseT(X) , 2x 10/100/1000 BaseT(X) (Combo SFP)

Auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection

Fiber Ports: 2x 1000Base SFP slot
LED Indicators: PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act
Ethernet Isolation: 1500 Vrms 1 minute

Power Input
Redundant Input Range: +12 VDC ~ +48 VDC (Non-isolation)
Power Consumption:   0.15A @ 24VDC idle without loading;

0.25A @ 24VDC with full loading

Alarm Contact: One relay output with current carrying capacity of 1A @ 30 VDC
Protection: Power reverse polarity protection

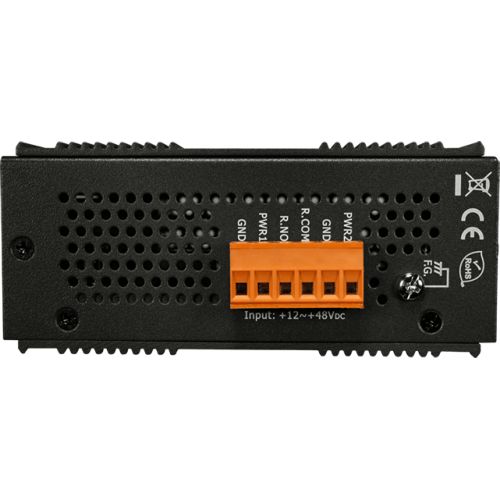

Connector: 6-Pin Removable Terminal Block (Power & Relay)

Mechanical
Casing: Metal with an IP30 ingress protection rating
Dimensions (W x L x H): 51 mm x 154 mm x 118 mm
Installation: DIN-Rail or Wall Mounting (with optional kit)

Environmental
Operating Temperature: -25 °C ~ + 75 °C
Storage Temperature: -40 °C ~ + 85 °C
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
