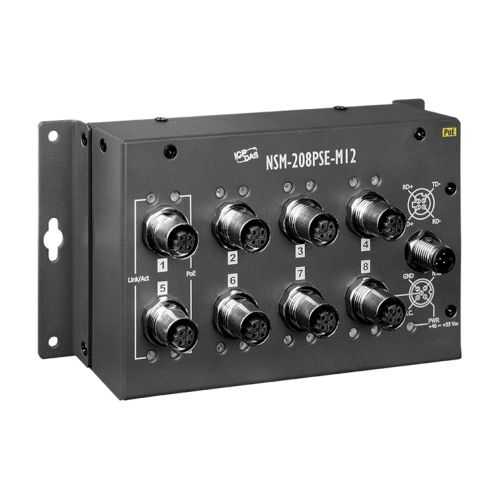

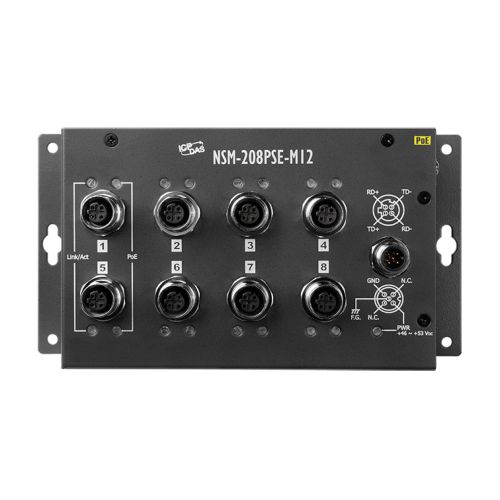

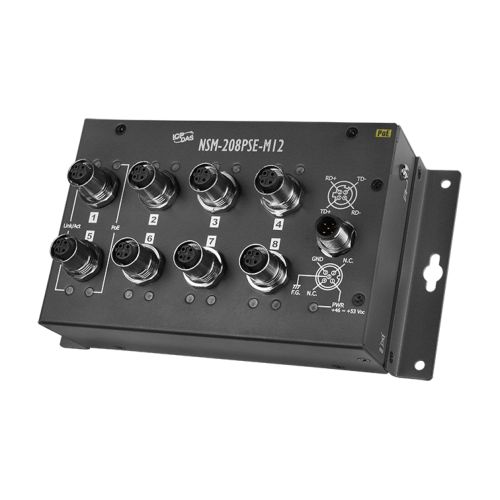

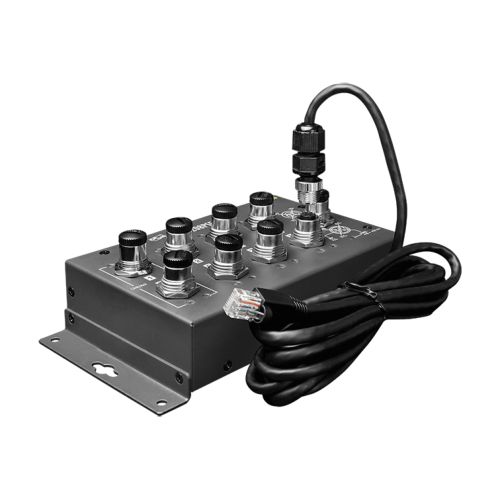

NSM-208PSE-M12 CR, EN50155 8-port M12 Unmanaged PoE Ethernet Switch Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1, A-CAP-M12F x 1 and 4SIX1K0000003 Wall mount
NSM-208PSE-M12 CR
EN50155 8-port M12 Unmanaged PoE Ethernet Switch Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1, A-CAP-M12F x 1 and 4SIX1K0000003 Wall mount
Features
- Each port supports both 10/100 Mbps speed auto negotiation
- 8 PoE ports with Power Sourcing Equipment (PSE) operation
- Over-temperature, over-current and over/under-voltage detection
- 8-port 10/100 Mbps M12 type connector with IP40 protection
- EN50155/50121-3-2/50121-4, and NEMA TS2 compliant
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Auto-detection of PD (powered devices) and automatic power management
- Supports operating temperatures from -40 °C ~ +75 °C
Introduction
The NSM-208PSE-M12 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The NSM-208PSE-M12 PoE switch provide 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
Specifications
LED Indicators
Status: PWR, Link/Act, Power Device is detected
Ethernet
Ports: 8 x M12 connector, 10/100Base-TX
Standards: IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type: Store & forward
MAC Table: 1024
Memory Bandwidth: 3.2 Gbps
Frame Buffer Memory: 512 Kbit
Flow Control: IEEE 802.3x flow control, back pressure flow control
Isolation: 1500 Vrms 1 minute
Connector: Female 4-Pin shielded M12 D-coding connector
PoE Technology
PoE Compliance: 100% IEEE 802.3af compliant
PoE Power: Up to 15.4 W per port
PoE Operation: Automatic detection and power management
PoE Pin Assignments: V+ (Pin 1, 2), V- (Pin 3, 6) for RJ-45
PoE Disconnect Mode: DC disconnect
PoE Voltage: +46 ~ +48 VDC depending on power input
Power
Reverse Polarity Protection: Yes
Input Range: +46 VDC ~ +53 VDC
Consumption: 0.12 A @ 48 VDC without PD loading
3.0 A @ 48 VDC with PD full loading
Mechanical
Casing: Metal
Dimensions (mm): 190 x 100 x 56 (W x L x H)
Installation: Wall Mounting
Ingress Protection Rating: IP40
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10% ~ 95% RH, non-condensing
