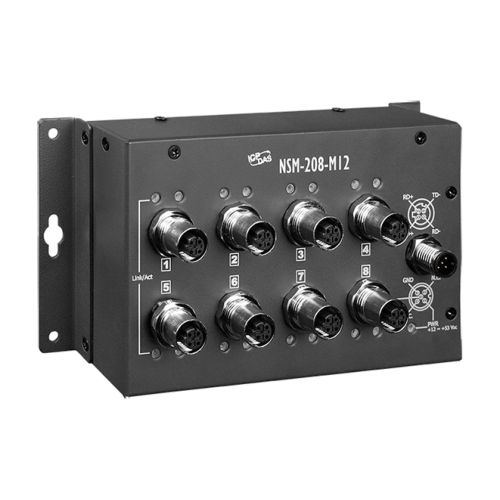

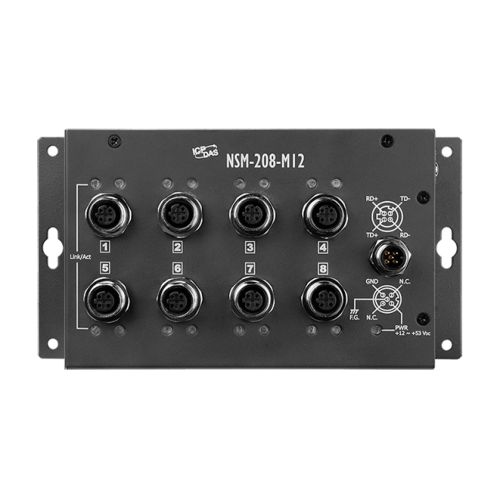

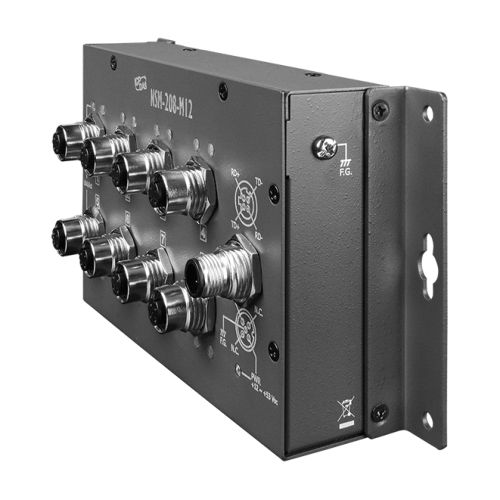

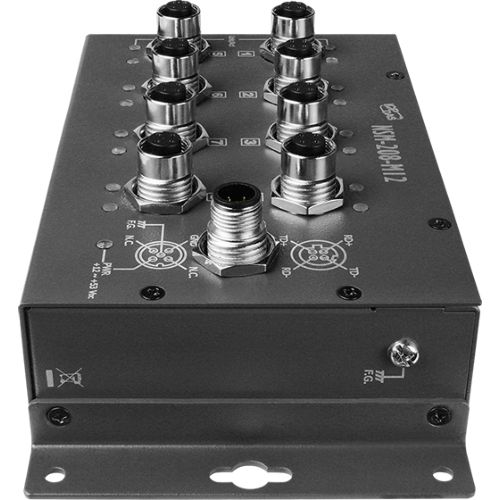

NSM-208-M12 CR, EN50155 8-port M12 Unmanaged Ethernet Switch Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1, A-CAP-M12F x 1
NSM-208-M12 CR
EN50155 8-port M12 Unmanaged Ethernet Switch Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1, A-CAP-M12F x 1
Features
- Each port supports both 10/100 Mbps speed auto negotiation
- 8-port 10/100 Mbps M12 type connector with IP40 protection
- EN50155/50121-3-2/50121-4, and NEMA TS2 compliant
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
Introduction
The NSM-208-M12 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network. The NSM-208-M12 provides a wide 12 to 53 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs
Specifications
LED Indicators
Status: PWR, Link/Act
Ethernet
Ports: 8 x M12 connector, 10/100Base-TX
Standards: IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type: Store & forward
MAC Table: 1024
Memory Bandwidth: 3.2 Gbps
Frame Buffer Memory: 512 Kbit
Flow Control: IEEE 802.3x flow control, back pressure flow control
Isolation: 1500 Vrms 1 minute
Connector: Female 4-Pin shielded M12 D-coding connector
Power
Reverse Polarity Protection: Yes
Input Range: +12 VDC ~ +53 VDC
Consumption: 0.12 A @ 48 VDC
Mechanical
Casing: Metal
Dimensions (mm): 190 x 100 x 56 (W x L x H)
Installation: Wall Mounting
Ingress Protection Rating: IP40
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10% ~ 95% RH, non-condensing
