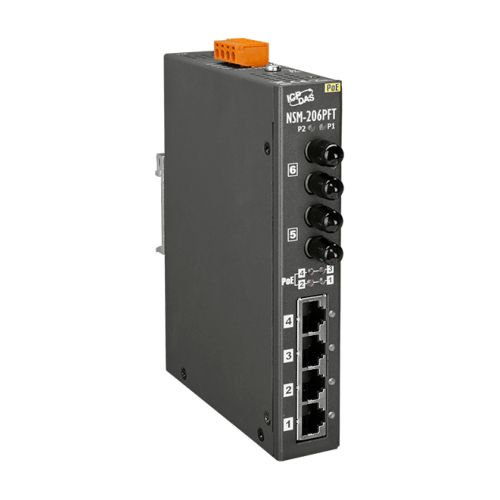

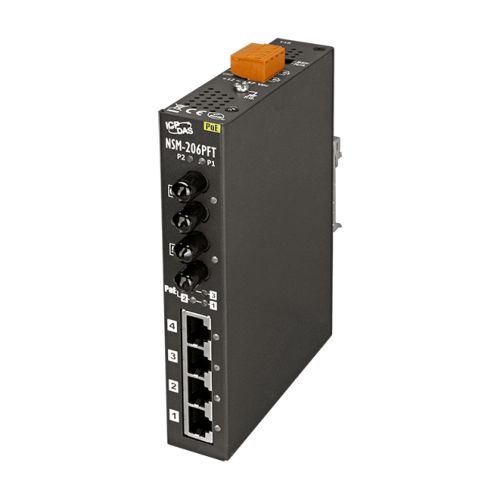

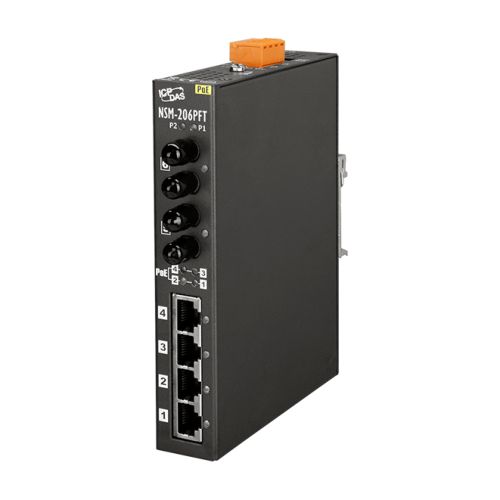

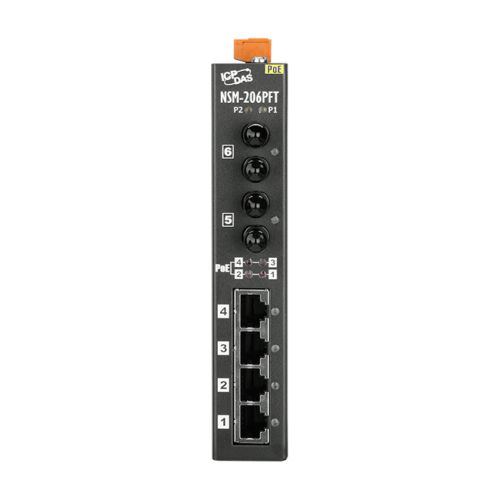

NSM-206PFT CR, Multi-mode, ST Connector, 4-port 10/100 Mbps PoE(PSE) with 2 Fiber ports Switch
NSM-206PFT CR
Multi-mode, ST Connector, 4-port 10/100 Mbps PoE(PSE) with 2 Fiber ports Switch
Features
4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
Up to 30 watts per PoE port at 24~57 VDC Power Input
Supports operating temperatures from -40 °C ~ +75 °C
Full duplex IEEE 802.3x and half duplex backpressure flow control
Power input 12~57 VDC wide range redundant power inputs
Broadcast Storm protection
Automatic MDI/MDI-X crossover for plug-and-play
Multi-mode, ST Connector Fiber supports
DIN-Rail Mounting, Wall Mounting (optional)
Introduction
The NSM-206PFT is 6-port unmanaged Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-206PFT enable centralization of the power supply, providing up to 30 watts. The NSM-206PFT can be used to power IEEE 802.3af/at standard devices (PD).
Specifications
LED Indicators
Status: PWR1, PWR2, POE, Link/Act, Speed
Ethernet
Ports: 4 x RJ-45, 10/100Base-TX
Standards: IEEE 802.3 for 10 Base-T
IEEE 802.3u for 100 Base-TX
IEEE 802.3x for Flow Control, Back Pressure Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over Ethernet
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
Processing Type: Store & forward; wire speed switching
MAC Table: 2048
Frame Buffer Memory: 768 Kbit
Isolation: 1500 Vrms 1 minute
DIP Switch: Broadcast Storm protection
PoE Technology
PoE Compliance: 100% IEEE 802.3at compliant
PoE Power: Up to 30 watts per channel
PoE Operation: Automatic detection and power management
PoE Pin Assignments: V+ (pin 1, 2), V-(pin 3, 6)
PoE Disconnect Mode: DC disconnect
PoE Voltage: +52 VDC
Fiber
Ports: 2 Port 100 Base-FX
ST connector
Mode: Multi-Mode
Fiber Cable: 50/125, 62.5/125 or 100/140 μm
Distance: 2 km, (62.5/125 μm recommended) for full duplex
Wavelength: 1300 or 1310nm
TX Output: -20 dBm Min.
-14 dBm Max.
RX Sensitivity: -32 dBm Max.
RX Overload: -8 dBm
Budget: 12 dBm
Power
Reverse Polarity Protection: Yes

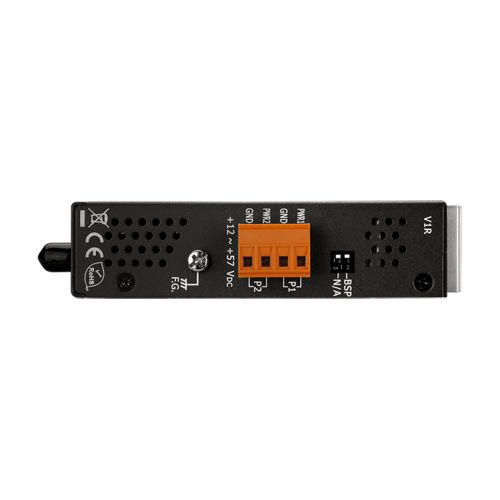

Input Range: 12 ~ 57 VDC Redundant dual Input
Redundant Power Inputs: Yes
Consumption: 0.125 A @ 12 VDC without PD loading, 6.2A @ 24VDC with PD full loading (15.4W per ports)
0.15 A @ 24 VDC without PD loading, 5.8A @ 24VDC with PD full loading (30W per ports)
0.10 A @ 48 VDC without PD loading, 2.9A @ 48VDC with PD full loading (30W per ports)
Mechanical
Casing: Metal
Dimensions (mm): DIN-rail mounting: 28 x 160 x 128 (W x L x H)
Wall mounting: 28 x 199 x 121 (W x L x H)
Installation: DIN-rail mounting or wall mounting (optional)
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10% ~ 90% RH, non-condensing
