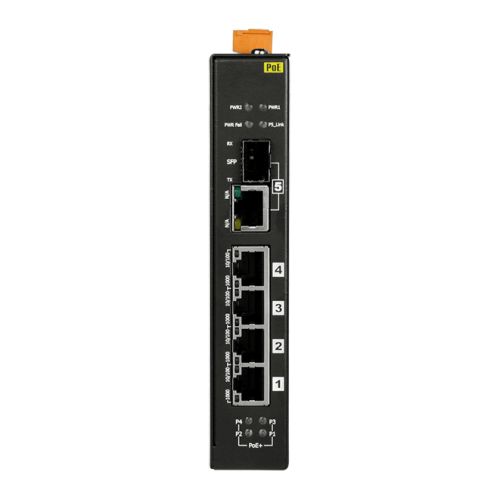

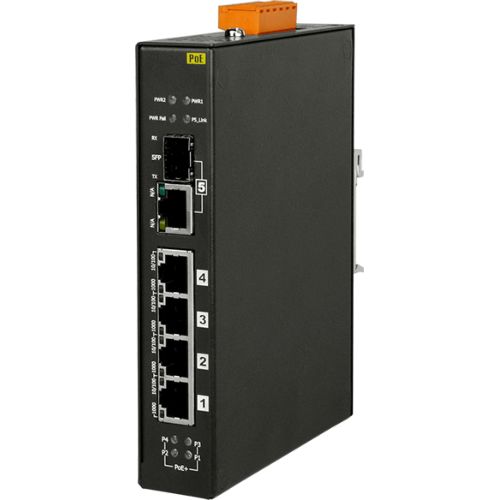

NSM-205GP CR
4G+1G Combo Port Gigabit Unmanaged Ethernet Switch with 4 IEEE 802.3af/at PoE+ ports
The NSM-205GP is 5-port unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the NSM-205GP switch enable centralization of the power supply, providing up to 30 watts. The NSM-205GP can be used to power IEEE 802.3af/at standard devices (PD).
Voltage boost technology supports 24V industrial power sources ensuring that a full and proper PSE voltage is available across all PoE ports.
NSM-205GP CR: 4G+1G Combo Port Gigabit Unmanaged Ethernet Switch with 4 IEEE 802.3af/at PoE+ ports (RoHS)
- Full Gigabit Ethernet ports
- 4 PoE/PoE + PSE capable ports, fully compliant to IEEE 802.3af/at
- 24/48 VDC flexible redundant power inputs
- Supports 10 KB jumbo frames
- Pluggable SFP transceiver port
- Supports Auto Negotiation and Auto MDI/MDI-X
- Supports operating temperatures from -40 ~ +75°C
- DIN-Rail Mounting, Wall Mounting (optional)
Technology
Standards:
- IEEE 802.3 for 10Base-T
- IEEE 802.3u for 100Base-TX
- IEEE 802.3ab for 1000Base-T
- IEEE 802.3x for Flow Control
- IEEE 802.3af Power Over Ethernet
- IEEE 802.3at Power Over Ethernet
- Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity
Processing Type: Store & forward, wire speed switching
MAC Addresses: 8K
Memory Bandwidth: 10 Gbps
Frame buffer memory: 1 Mbit
Jumbo Frames: 10K for Speed 1000M
Flow Control: IEEE 802.3x flow control, back pressure flow control
Interface
RJ-45 Ports: 10/100/1000 BaseT(X), 10/100 BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
Fiber Port: 1000BaseSFP slot/100BaseSFP slot
LED Indicators: PWR1, PWR2, Power fail, 10/100M, 1000M, Link/Act, Power Device is detected
Ethernet Isolation: 1500 Vrms 1 minute
DIP Switch: 100BaseSFP/1000BaseSFP and PoE/PoE+ setting
Power Input
Redundant Input Range: Flexible input +24/+48 VDC Nominal. ( +18 ~ +55 VDC)
Power Consumption:
- 0.13@ 48 VDC without PD loading; 3.1 A @ 48 VDC with PD full loading (30 W per ports)
- 0.25@ 24 VDC without PD loading; 6.2 A @ 24 VDC with PD full loading (30 W per ports)
Alarm Contact: One relay output with current carrying capacity of 1A @ 30 VDC
Protection: Power reverse polarity protection

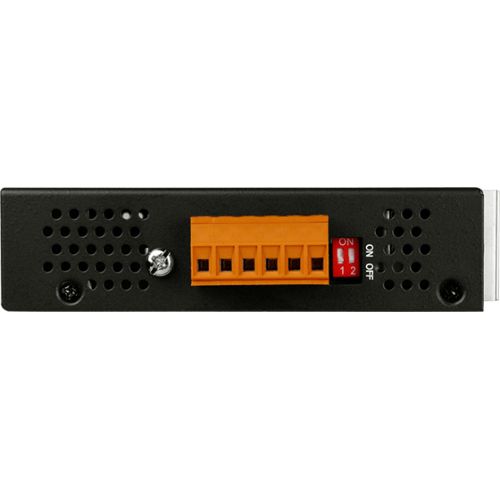

Connector: 6-pin Removable Terminal Block (Power & Relay)
Mechanical
Chassis: Metal with an IP30 ingress protection rating
Dimension (W x L x H): 28 mm x 160 mm x 122 mm
Installation: DIN-Rail or Wall Mounting (with optional kit)
Environment
Operating Temp.: -40 °C ~ + 75 °C ( -40° F to 167° F )
Storage Temp.: -40 °C ~ + 85 °C (-40 F to 185° F)
Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
