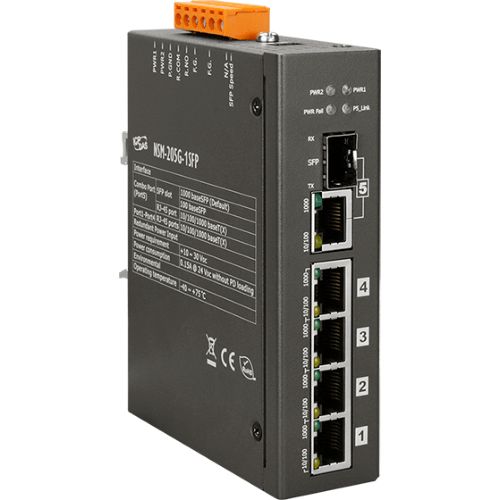

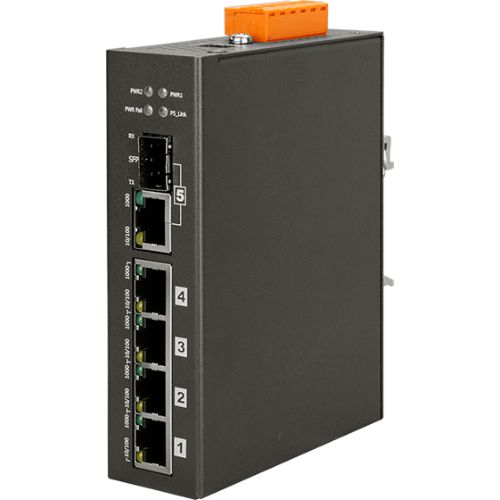

NSM-205G-1SFP CR, 4+1G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
NSM-205G-1SFP CR
4+1G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
Features
- 1 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
- Supports Auto Negotiation and Auto MDI/MDI-X
- Supports Dual +12 ~ 48 VDC power input and 1 relay output
- Power loss alarm
- Supports operating temperatures from –40 ~ +75°C
- DIN-Rail Mounting, Wall Mounting (optional)
Introduction
The NSM-205G-1SFP is 4 Port 10/100/1000 Base copper and 1 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation, Auto MDI/MDI-X, high-speed(1Gbps) and high-distance transmissions. Apart from this, NSM-205G-1SFP supports dual power and provides +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.
Specifications

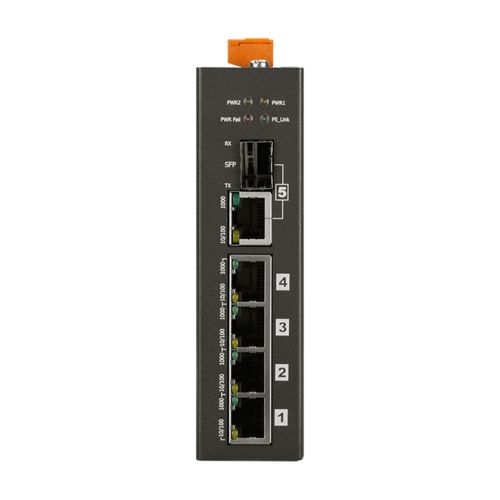

LED Indicators
Status: PWR1, PWR2, Power fail, 10/100M, 1000M, Link/Act
Ethernet
Ports: 4 x RJ-45, 10/100/1000BaseT(X),
1 x RJ45/SFP Slot Combo, 100/1000Base-T(X)
Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow Control
Processing Type: Store & forward, wire speed switching
MAC Table: 8 K
Memory Bandwidth: 10 Gbps
Frame Buffer Memory: 1 Mbit
Flow Control: IEEE802.3x flow control, back pressure flow control
Jumbo Frames: 10 K for Speed 1000 M
Isolation: 1500 Vrms 1 minute

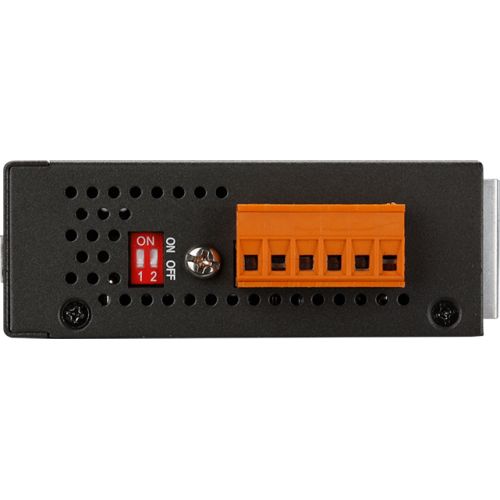

DIP Switch: 100 BaseSFP/1000 BaseSFP setting
Fiber
Ports: 1 x 100/1000 Mbps SFP Fiber Module slots
Power
Reverse Polarity Protection: Yes
Input Range: +12 VDC ~ +48 VDC (Non-isolation)
Redundant Power Inputs: Yes
Consumption: 0.15A @ 24VDC
Alarm Output: Yes,Relay 1 A @ 30 VDC
Mechanical
Casing: Metal
Dimensions (mm): DIN-rail mounting: 33 x 131 x 100 (W x L x H)
Wall mounting: 33 x 170 x 93 (W x L x H)
Installation: DIN-rail mounting or wall mounting (optional)
Ingress Protection Rating: IP30
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10% ~ 90% RH, non-condensing
