NSM-200LX CR ICP DAS Ethernet Converters



1000 Base-T to 1000Base-LX/SX Fiber Media Converter (SC type connector). +12 VDC ~ +48 VDC (Non-isolated) 10 km distance, 0.1 A @ VDC Power Consumption. Provides Link Fault Pass-through (LFP). Has operating temperature range of -30°C ~ +75°C



€ 316,74

(VAT excluded)

€ 386,42(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 386,42

Availability: 15 business days

SKU: 106481

Model: NSM-200LX CR

Need Help?

ICP DAS's line of feature rich 10/100/1000 SFP Media Converters transparently connects copper to SFP for multimode or single mode fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by ICP DAS or other manufacturers of MSA (Multi-source Agreement) compliant SFPs.
Gigabit Media Converters are also available with support for LFP (Link Fault Pass-through) feature.

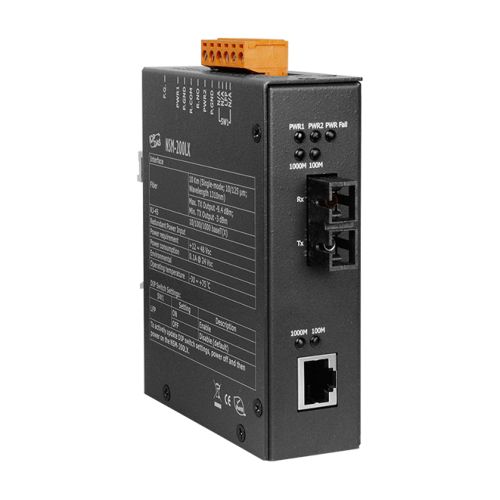

NSM-200LX CR: Industrial 1000 Base-T to 1000 Base-LX Fiber Converter, Single-mode 1310 nm, 10 km, SC connector (RoHS)

  • Provides 1 x 1000 Mbps fiber port with SC type connector for 1000 Base-SX/LX device
  • Supports wide operating temperatures from -30°C ~ +75°C
  • Transparent to jumbo packets up to 10 KB
  • Provides Link Fault Pass-through (LFP)
  • Supports redundant +12 VDC ~ +48 VDC power input


RJ-45 Ports: 10/100/1000 Base-T(X) auto negotiation speed and auto MDI/MDI-X connection
Fiber Port: 1000BaseSFP slot/100BaseSFP slot
LED Indicators: PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M
Optical Fiber: 10/125 μm (Signal Mode)
Distance: 10 km
Wavelenght: 1310 nm
Min. TX Output: -9.4 dBm
Max. TX Output: -3 dBm
Max. RX Sensitivity: -20 dBm
Min. RX Overload: -3 dBm


Input Voltage Range: +12 VDC ~ +48 VDC (Non-isolated)
Power Consumption: 0.1 A @ 24 VDC


Dimensions (W x L x H): 34 mm x 111 mm x 121 mm

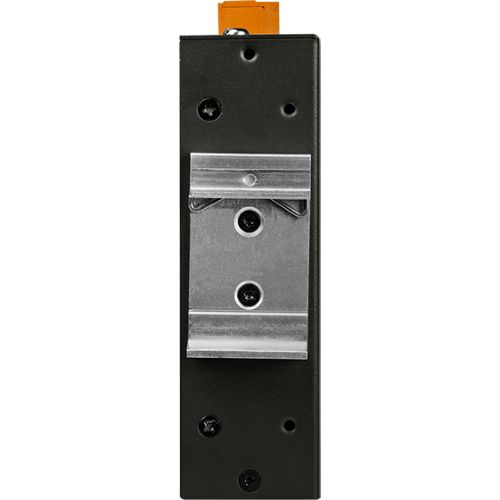

Installation: DIN-Rail Mounting (optional wall mounting kits)


Operating Temp.: -30 °C ~ +75 °C
Storage Temp.: -40 °C ~ +85 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
