features and benefits

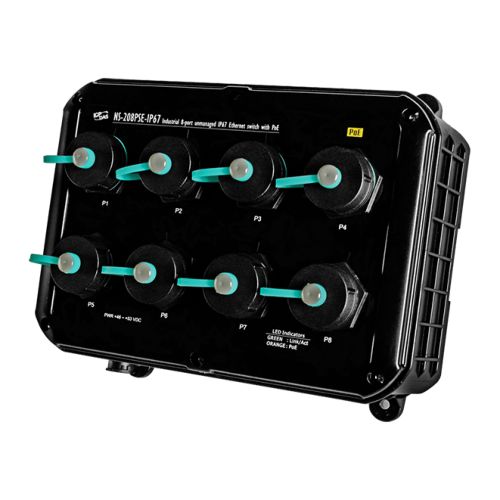

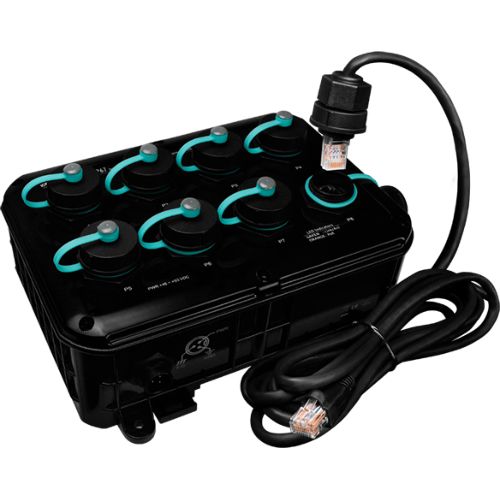

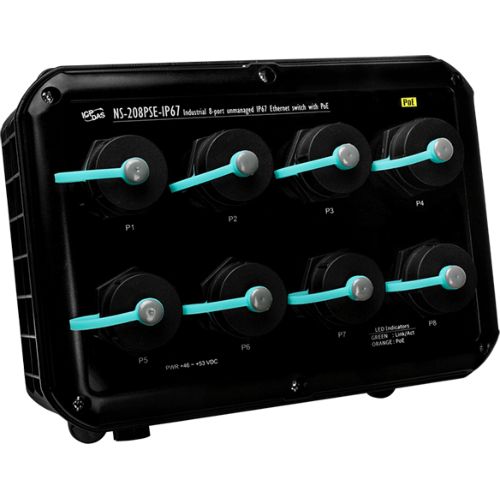

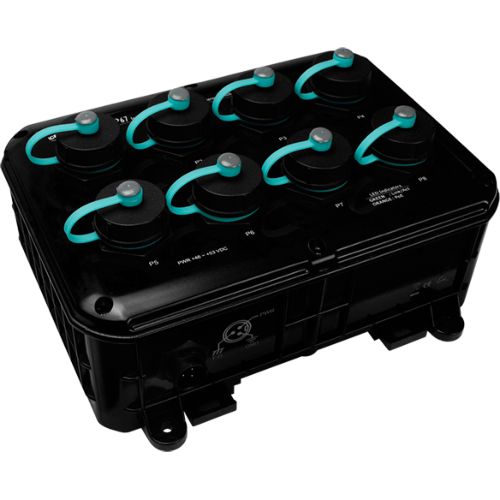

The NS-208PSE-IP67 is designed for industrial applications in harsh environments.
The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
The NS-208PSE-IP67 PoE switch provides 8 fast Ethernet with 8 IEEE 802.3af compliant PoE ports.
The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Each port supports both 10/100 Mbps speed auto negotiation
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Rugged RJ-45 Connector for anti-vibration and shock
- IP67 grade protection approval
- 8 PoE ports with Power Sourcing Equipment (PSE) operation
- Auto-detection of PD (powered devices) and automatic power management
- Over-temperature, over-current and over/under-voltage detection
specifications
LED Indicators| Status | PWR, Link/Act , Power Device is detected |
|---|
Ethernet| Ports | 8 x RJ-45, 10/100Base-TX |
|---|
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
|---|
| Processing Type | Store & forward; wire speed switching |
|---|
| MAC Table | 1024 |
|---|
| Memory Bandwidth | 2 Gbps |
|---|
| Frame Buffer Memory | 512 Kbit |
|---|
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
|---|
| Isolation | 1500 Vrms 1 minute |
|---|
PoE Technology| PoE Compliance | 100% IEEE 802.3af compliant |
|---|
| PoE Power | Up to 15.4 watts per channel |
|---|
| PoE Operation | Automatic detection and power management |
|---|
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
|---|
| PoE Disconnect Mode | DC disconnect |
|---|
| PoE Voltage | +46 ~ +48 VDC depending on power input |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +46 ~ +53 VDC for PoE output |
|---|
| Consumption | 0.05 A @ 48 VDC without PD loading; | 1.45 A @ 48 VDC with PD full loading |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | DIN-rail mounting: 190 x 133 x 104 (W x L x H) | Wall mounting: 190 x 155 x 104 (W x L x H) |
|---|
| Installation | DIN-rail mounting or wall mounting |
|---|
| Ingress Protection Rating | IP67 for Operating Temperature -10 °C ~ +60 °C | IP66 for Operating Temperature -40 °C ~ +75 °C |
|---|
Environment| Operating Temperature | -10 °C ~ +60 °C (Protection rating IP67) | -40 °C ~ +75 °C (Protection rating IP66) |
|---|
| Storage Temperature | -10 °C ~ +60 °C (Protection rating IP67) | -40 °C ~ +75 °C (Protection rating IP66) |
|---|
| Humidity | 100% RH for Operating Temperature -10 °C ~ +60 °C | 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C |
|---|
