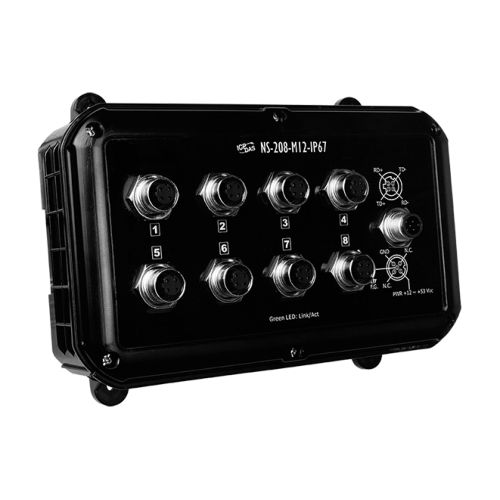

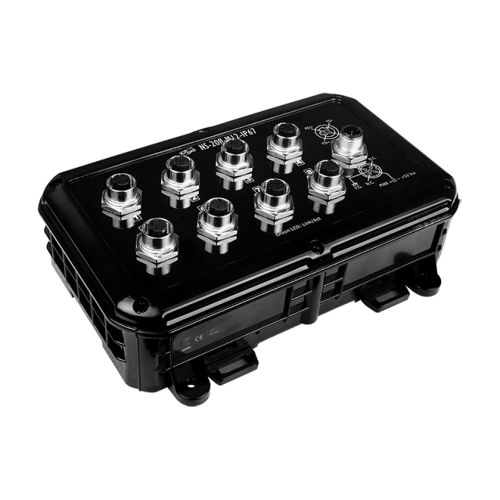

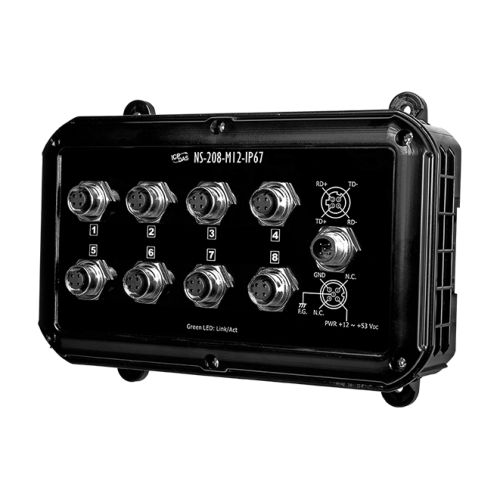

NS-208-M12-IP67 CR
8-port M12 Unmanaged Ethernet Switch with IP67
- Each port supports both 10/100 Mbps speed auto negotiation
- 8 PoE ports with Power Sourcing Equipment (PSE) operation
- (NSM-208PSE-M12-IP67)
- Over-temperature, over-current and over/under-voltage detection
- (NSM-208PSE-M12-IP67)
- 8-port 10/100 Mbps M12 type connector with IP67 protection
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Auto-detection of PD (powered devices) and automatic power management (NSM-208PSE-M12-IP67)
- Supports operating temperatures from -40 °C ~ +75 °C
INTRODUCTION
The NS-208PSE-M12-IP67/NS-208-M12-IP67 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.
The NS-208PSE-M12-IP67 PoE switch provides 8 fast Ethernet M12 ports with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port.
The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network.
The NS-208-M12-IP67 provides a wide +12 VDC ~ +53 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
SPECIFICATIONS
Technology
Standards: IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type: Store & forward
MAC Addresses: 1024
Memory Bandwidth: 3.2 Gbps
Frame Buffer Memory: 512 Kbit
Flow Control: IEEE 802.3x flow control, back pressure flow control
Interface
LED Indicators: PWR, Link/Act
Ethernet Isolation: 1500 Vrms 1 minute
Connector: Female 4-Pin shielded M12 D-coding connector X 8
Power Input
Input Voltage Range: +12 VDC ~ +53 VDC
Power Consumption: 0.12 A @ 48 VDC
Protection: Power reverse polarity protection
Connector: Male 5-Pin shielded M12 A-coding connector X 1
Mechanical
Casing: Plastic with IP67
Dimensions (W x L x H): 190 mm x 62 mm x 134 mm
Installation: DIN-Rail Mounting or Wall Mounting
Environmental
Operating Temperature: -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature: -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Ambient Relative Humidity: 100% RH for Operating Temperature -10 °C ~ +60 °C
10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C
