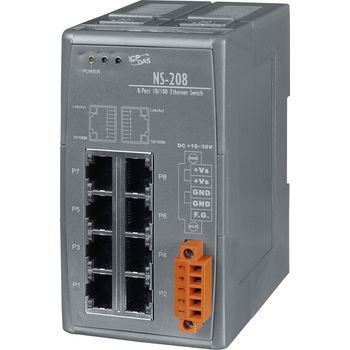

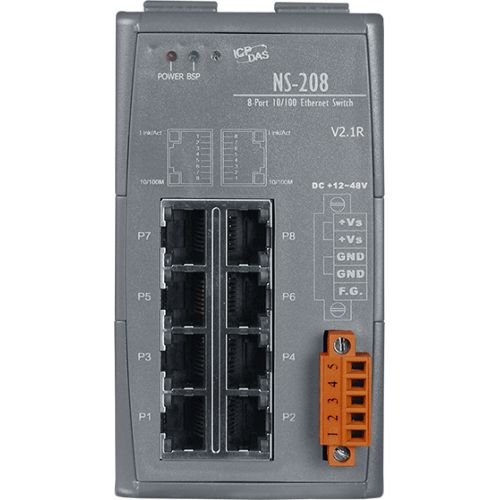

NS-208 CR
Unmanaged 8-Port Industrial 10/100 Base-TX Ethernet Switch
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 2.0 Gbps high performance memory bandwidth.
- Supports +10 ~ +30V DC voltage
- Reverse Polarity Protection
- Supports operating temperatures from –30 ~ +75 °C
- DIN rail mount for industrial usage
The NS-208 has 8 Ethernet Switching ports that support 10/100Base-T, with a 10/100M auto-negotiation feature and auto MDI/MDIX function. It can connect 8 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections.
The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45.
Technology
Standards: IEEE802.3, 802.3u, 802.3x
Processing Type: Store & forward wire speed switching - no delays
MAC Addresses: 1024
Memory Bandwidth: 2 Gbps
Flow Control: IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports: 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection
LED Indicators: Power, 10/100M, Link/Act
Ethernet Isolation: 1500 Vrms 1 minute
Frame Ground for EMS Protection: Yes
Cable:
Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range: +10 ~ +30VDC (Non-isolation)
Power consumption: 0.15A@24VDC, +/- 5% arrowed with 10M Full duplex.
0.09A@24VDC, +/- 5% arrowed with 100M Full duplex
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes
Connection: 5-Pin Removable Terminal Block
Mechanical
Case: Plastic
Flammability: UL 94V-0
Dimensions: 64mm x 118mm x 98mm (W x H x D)
Installation: DIN rail mount
Environmental
Operating Temperature: -30 ~ +75°C
Storage Temperature: -40 ~ +85°C
Ambient Relative Humidity: 10% to 90% non-condensing
