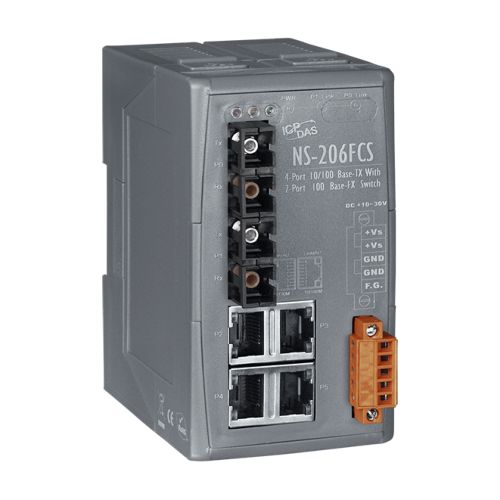

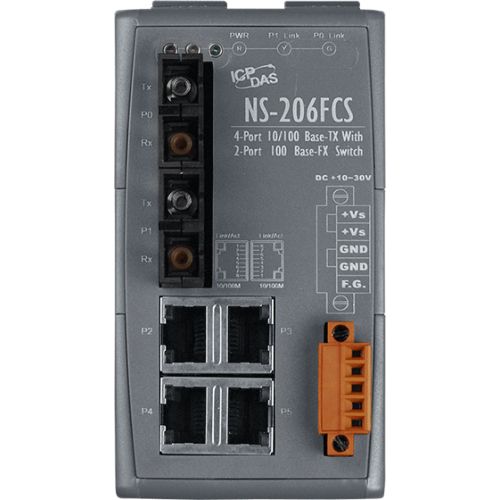

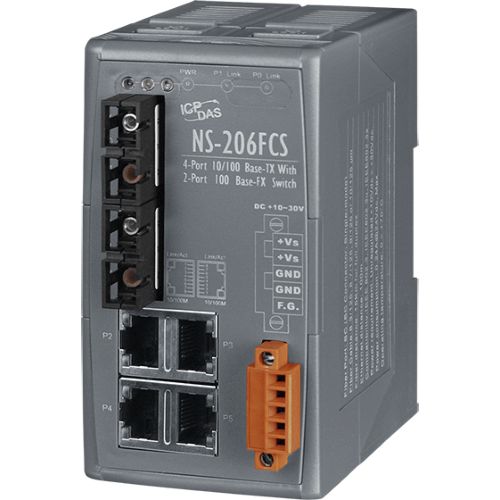

NS-206FCS CR ICP DAS Unmanaged

• Provides 2 x 100-FX fiber port plus 4 x Ethernet ports
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Supports operating temperatures from 0 ~ +70 °C

 The NS-206F/NSM-206F is a 4-port unmanaged Ethernet with dual fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 15 km) ransmissions.
The NS-206F/NSM-206F provides a wide 10 to 30 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.

Technology

Standards:  IEEE 802.3, 802.3u, 802.3x
Processing Type:  Store & forward; wire speed switching
MAC Addresses:  1024
Memory Bandwidth:  1.6 Gbps
Frame Buffer Memory:  256 Kbit
Flow Control:  IEEE 802.3x flow control, back pressure flow control

Ethernet Interface

RJ-45 Ports:  10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators:  Power, Link/Act, 10/100M
Ethernet Isolation:  1500 Vrms 1 minute

Fiber Interface (100 Base-FX; SC/ST type)

Multi-Mode:
            NS-206FT/NS-206FC:
            NSM-206FT/NSM-206FC:
                      Multi mode fiber cables: 50/125, 62.5/125 or 100/140 μm
                      Distance: 2 km, (62.5/125 μm recommended) for full duplex
                      Wavelength: 1300 or 1310nm
                      Min. TX Output: -20 dBm
                      Max. TX Output: -14 dBm
                      Max. RX Sensitivity: -34 dBm
Single-Mode:
            NS-206FCS/NSM-206FCS:
                      Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
                      Distance: 15 km, (9/125 μm recommended) for full duplex
                      Wavelength: 1300 or 1310nm
                      Min. TX Output: -15 dBm
                      Max. TX Output: -8 dBm
                      Max. RX Sensitivity: -36 dBm

Power Input

Input Voltage Range:  +10 ~ +30 VDC (Redundant input)
Power Consumption:  0.24 A @ 24 VDC
Protection:  Power reverse polarity protection
+/-4 kV ESD Protection:  Yes
Connector:  5-Pin Removable Terminal Block

Mechanical

Casing:  Plastic (Flammability UL 94V-0)
Dimensions (W x L x H):  64 mm x 101 mm x 118 mm
Installation: DIN-Rail Mounting

Environment

Operating Temperature 0 °C ~ +70 °C
Storage Temperature -20 °C ~ +85 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
