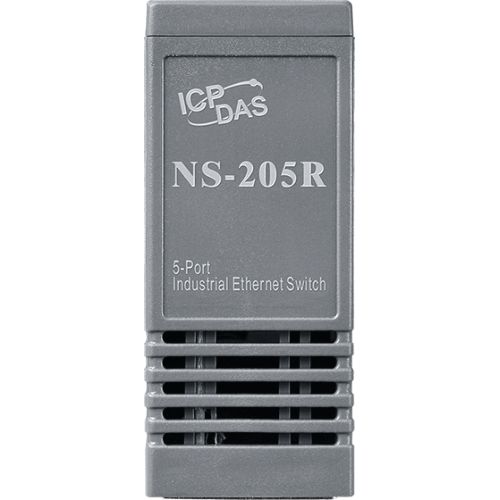

NS-205R CR
Unmanaged 5-port Industrial 10/100 Mbps Ethernet Switch with conformal coating
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Slim packaging fits on your DIN-Rail Mounting
- Each port supports both 10/100 Mbps speed auto negotiation
- Supports +12 VDC ~ +56 VDC for NS-205A
- Supports operating temperatures from -40 °C ~ +75 °C
The NS-205/NS-205A has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-205/NS-205A is just 33 mm, so it can be used where space is important.
Technology
Standards: IEEE 802.3, 802.3u, 802.3x
Processing Type: Store & forward; wire speed switching
MAC Addresses: 1024
Memory Bandwidth: 1.4 Gbps
Frame Buffer Memory: 256 Kbit
Flow Control: IEEE 802.3x flow control
Interface

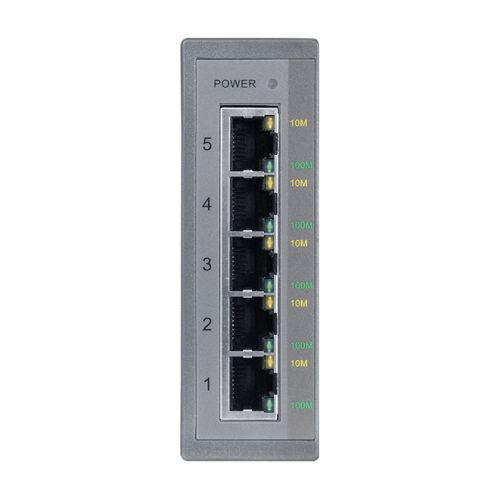

RJ-45 Ports: 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators: Power, Link/Act, 10/100M
Ethernet Isolation: 1500 Vrms 1 minute
EMS Protection: Yes
Cable:
Ethernet: 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Redundant Power
Input Voltage Range: +10 ~ +30 VDC (Non-isolated)
Power Consumption: 0.1 A @ 24 VDC
Protection: Power reverse polarity protection
EMS Protection: Yes

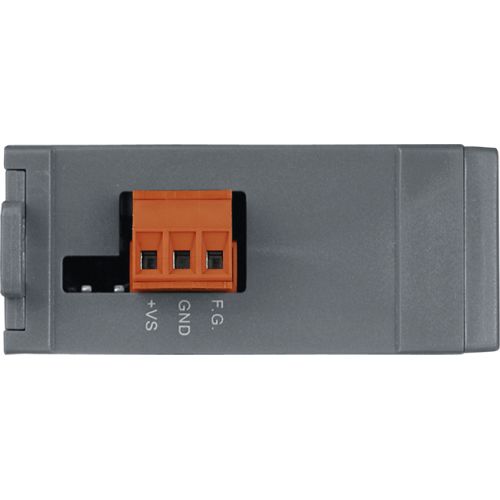

Connector: 3-Pin Removable Terminal Block
Mechanical
Casing: Plastic
Flammability: UL 94V-0
Dimensions: (W x L x H) 33 mm x 78 mm x 107 mm
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
