features and benefits
The NS-205PFC-24V is a 4-port unmanaged PoE (PSE) with 1 fiber port switch; it supports 4 PoE ports which are classified as power source equipments (PSE).
The NS-205PFC-24V makes centralized power supply come true and provides up to 15.4 watts of power per PSE port.
Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions.
The NS-205PFC-24V is designed with 24 VDC to 48 VDC boost for PoE application where 48 VDC power supply is not available.
- Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 4 PoE ports with Power Sourcing Equipment (PSE) operation
- Automatic MDI/MDI-X crossover for plug-and-play
- Auto-detection of PD (powered devices) and automatic power management
- Over-temperature, over-current and over/under-voltage detection
- Supports operating temperatures from -30 ~ +75 °C
- Multi-mode, SC Connector Fiber supports

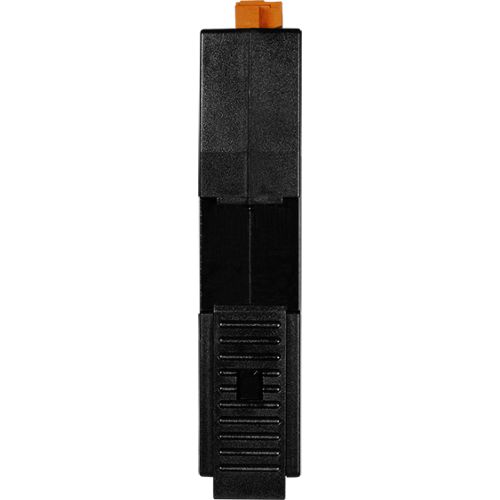

- DIN-Rail Mounting
specifications
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact |
|---|
LED Indicators| Status | Power, Link/Act, Power Device is detected |
|---|
Ethernet| Ports | 4 x RJ-45, 10/100Base-TX |
|---|
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
|---|
| Processing Type | Store & forward; wire speed switching |
|---|
| MAC Table | 1024 |
|---|
| Memory Bandwidth | 3.2 Gbps |
|---|
| Frame Buffer Memory | 512 Kbit |
|---|
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
|---|
| Isolation | 1500 Vrms 1 minute |
|---|
PoE Technology| PoE Compliance | 100% IEEE 802.3af compliant |
|---|
| PoE Power | Up to 15.4 watts per channel |
|---|
| PoE Operation | Automatic detection and power management |
|---|
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
|---|
| PoE Disconnect Mode | DC disconnect |
|---|
Fiber| Ports | 1 x 100 Base-FX, SC connector |
|---|
| Mode | Multi-Mode |
|---|
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
|---|
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
|---|
| Wavelength | 1300 or 1310nm |
|---|
| TX Output | -20 dBm Min. | -14 dBm Max. |
|---|
| RX Sensitivity | -32 dBm |
|---|
| RX Overload | -8 dBm |
|---|
| Budget | 12 dBm |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +18 ~ +32 VDC |
|---|
| Consumption | 0.24 A @ 24 VDC without PD loading; | 3.2 A @ 24 VDC with PD full loading; | 4.6 A @ 18 VDC with PD full loading |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -30 °C ~ +75 °C |
|---|
| Storage Temperature | -40 °C ~ +85 °C |
|---|
| Humidity | 10% ~ 90% RH, non-condensing |
|---|
