features and benefits

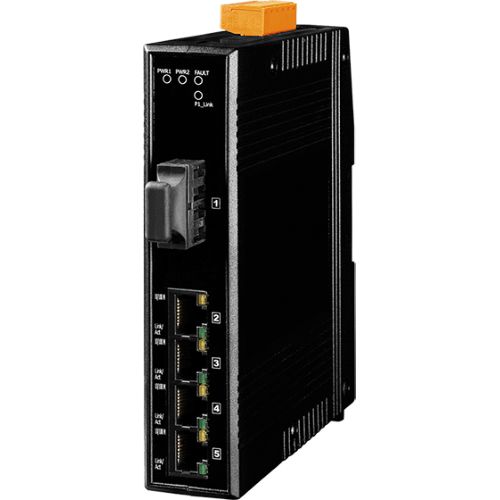

The NS-205AFC-T is a 4-port unmanaged Ethernet with 1 fiber port switch.
Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions.
The NS-205AFC-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.
The wide power input lowers installation and maintenance costs.
- Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
- Each port supports both 10/100 Mbps speed auto negotiation
- Full duplex IEEE 802.3x
- Automatic MDI/MDI-X crossover for plug-and-play
- Store-and-forward architecture

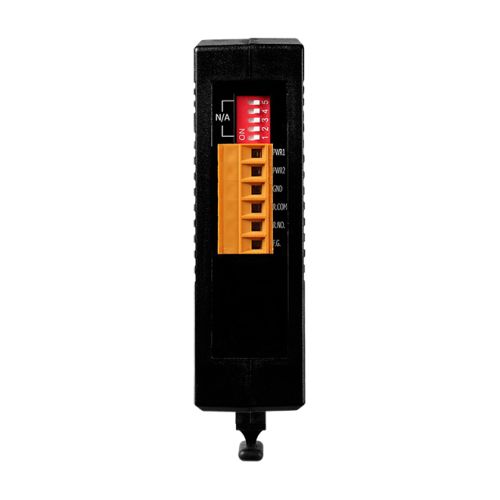

- Redundant dual +12 ~ 48 VDC power inputs
- Multi-mode, SC Connector Fiber supports
- Broadcast Storm protection
specifications
EMS ProtectionESD (IEC 61000-4-2) | ± 4 kV Contact |
---|

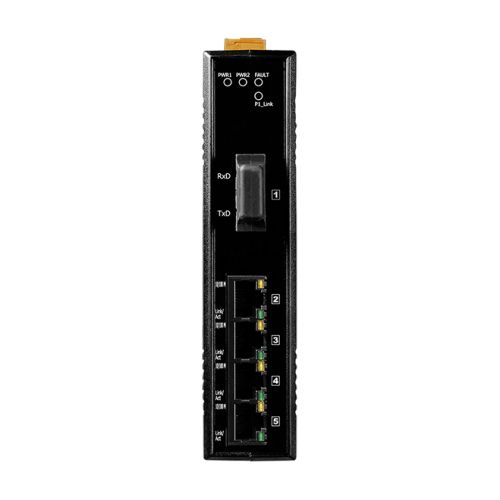

LED IndicatorsStatus | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
---|
EthernetPorts | 4 x RJ-45, 10/100Base-TX |
---|
Standards | IEEE 802.3, 802.3u, 802.3x |
---|
Processing Type | Store & forward |
---|
MAC Table | 2048 |
---|
Frame Buffer Memory | 1 Mbit |
---|
Flow Control | IEEE 802.3x flow control |
---|
Isolation | 1500 Vrms 1 minute |
---|
FiberPorts | 1 x 100 Base-FX, SC connector |
---|
Mode | Multi-Mode |
---|
Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
---|
Distance | 2 km, (62.5/125 μm recommended) for full duplex |
---|
Wavelength | 1300 or 1310nm |
---|
TX Output | -20 dBm Min. | -14 dBm Max. |
---|
RX Sensitivity | -32 dBm |
---|
RX Overload | -8 dBm |
---|
Budget | 12 dBm |
---|
PowerReverse Polarity Protection | Yes |
---|
Input Range | +12 ~ +48 VDC (Redundant input) |
---|
Redundant Power Inputs | Yes |
---|
Consumption | 0.2 A @ 24 VDC |
---|
Alarm Output | Yes,Relay 2 A @ 30 VDC |
---|
MechanicalCasing | Plastic |
---|
Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
---|
Installation | DIN-Rail Mounting |
---|
EnvironmentOperating Temperature | -30 °C ~ +75 °C |
---|
Storage Temperature | -40 °C ~ +85 °C |
---|
Humidity | 10% ~ 90% RH, non-condensing |
---|
