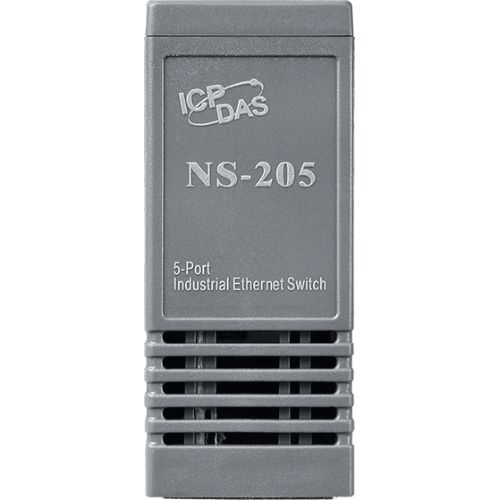

NS-205 CR ICP DAS Unmanaged


NS-205 CR

Unmanaged 5-port Industrial 10/100 Mbps Ethernet Switch



€ 96,29

(VAT excluded)

€ 117,47(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 117,47

Availability: 15 business days

SKU: 4087

Model: NS-205 CR

Need Help?

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Slim packaging fits on your DIN-Rail Mounting
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Supports +12 VDC ~ +56 VDC for NS-205A
  • Supports operating temperatures from -40 °C ~ +75 °C

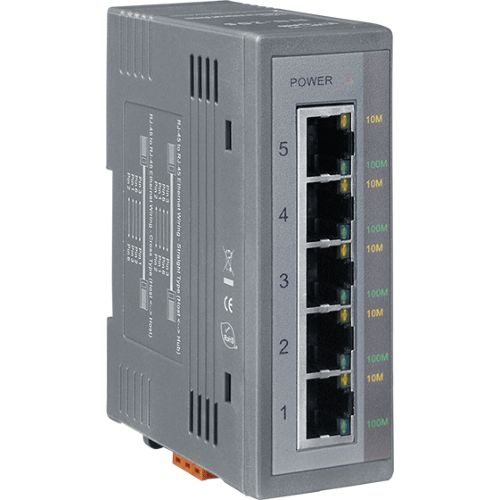

The NS-205/NS-205A has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-205/NS-205A is just 33 mm, so it can be used where space is important.


Standards:  IEEE 802.3, 802.3u, 802.3x
Processing Type:  Store & forward; wire speed switching
MAC Addresses:  1024
Memory Bandwidth:  1.4 Gbps
Frame Buffer Memory:  256 Kbit
Flow Control:  IEEE 802.3x flow control


RJ-45 Ports:  10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators:  Power, Link/Act, 10/100M
Ethernet Isolation:  1500 Vrms 1 minute
EMS Protection:  Yes
       Ethernet: 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω
       Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω

Redundant Power

Input Voltage Range:  +10 ~ +30 VDC (Non-isolated)
Power Consumption:  0.1 A @ 24 VDC
Protection:  Power reverse polarity protection
EMS Protection:  Yes

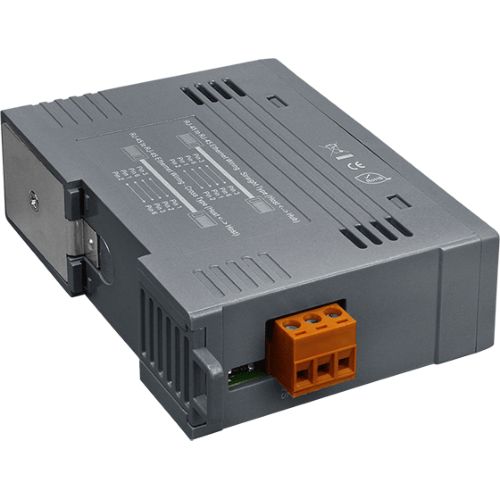

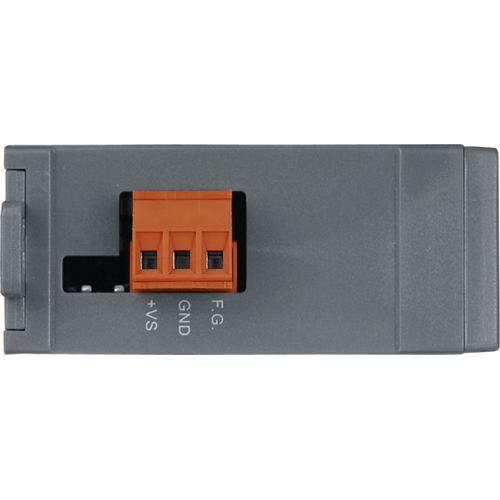

Connector:  3-Pin Removable Terminal Block


Casing:  Plastic
Flammability:  UL 94V-0
Dimensions: (W x L x H) 33 mm x 78 mm x 107 mm
Installation:  DIN-Rail Mounting


Operating Temperature:  -40 °C ~ +75 °C
Storage Temperature:  -40 °C ~ +85 °C
Ambient Relative Humidity:  10% ~ 90% RH, non-condensing
