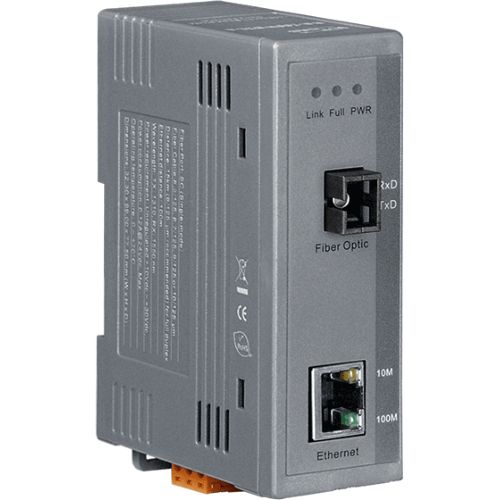

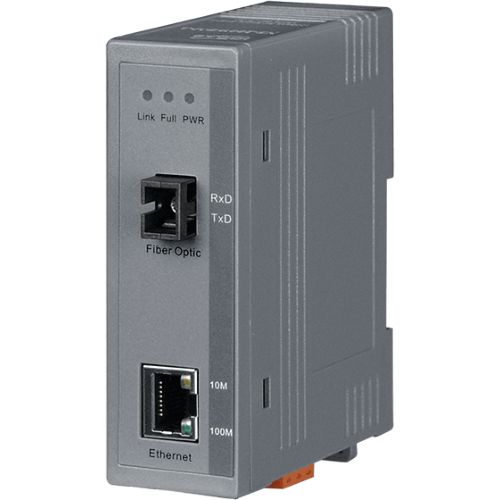

NS-200WDM-A CR ICP DAS Ethernet Converters



Industrial Single-Strand 10/100 Base-T(X) to 100 Base-FX Media Converter, with Single-mode; SC connector, TX 1310 nm, RX 1550 nm, SC. Supports operating temperatures from 0°C ~ +70°C



€ 233,23

(VAT excluded)

€ 284,54(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 284,54

Availability: 15 business days

SKU: 2949

Model: NS-200WDM-A CR

Need Help?

  • Automatic MDI / MDI-X crossover for plug-and-play
  • Supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x flow control
  • 1.4Gbps high performance memory bandwidth.
  • Power Input, +12 ~ +48 VDC
  • Reverse Polarity Protection
  • Supports operating temperatures from 0 ~ +70°C
  • DIN-Rail

Using the fiber optic medium for Ethernet applications has become more popular due to fiber optic's excellent physical features, especially for long distance networks. However, fiber optic cable is very expensive, so if we can apply a solution that uses only 1 cable instead of 2, the infrastructure cost can be cut in half.
The NS-200WDM Series provides a solution that reduces your expense by 50%!
The NS-200WDM Series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
50% Cost Saving for Fiber Optic Infrastructures
With a pair of NS-200WDM series products (NS-200WDM-A and NS-200WDM-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application.
It contains "soft start" function with overload protection, high-low voltage protection.
The width of the NS-200WDM is just 32mm, so it can be used where space is important.


Standards: IEEE802.3, 802.3u, 802.3x
Processing Type: Store & forward wire speed switching
MAC Addresses: 1024
Memory Bandwidth: 1.4 Gbps
Flow Control: IEEE802.3x flow control flow control


RJ45 port: 10/100BaseT(X) auto negotiation speed, and auto MDI/MDIX connection
Fiber Optic port: 100 Base-FX(Single-mode; SC connector)
LED Indicators: 10/100M, Link/Act, Full duplex(Fiber Port)
Ethernet Isolation: 1500 Vrms 1 minute
Frame Ground for EMS Protection: Yes
Fiber Optic:
          Single-mode fiber cables:8.3/125, 8.7/125, 9/125 or 10/125 μm
          Distance: 15 km, (9/125 μm mrecommended) for full duplex
                 TX: 1310, RX: 1550 nm for NS-200WDM-A
                 TX: 1550, RX: 1310 nm for NS-200WDM-B
          Min. TX Output: -14 dBm
          Max. TX Output: -8 dBm
          RX Sensitivity: -31 dBm
Ethernet Transmission distance:
             Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
             Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm


Input Voltage Range: +12 ~ +48 VDC (Non-isolation)
Power consumption: 0.12 A @ 24 VDC, +/- 5% arrowed with 100M Full duplex
LED Indicator: Yes
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes
Connection: 3-Pin Removable Terminal Block


Case: Plastic
Flammability: UL 94V-0
Dimensions: 32.30mm x 99.00mm x 77.50mm (W x H x D)
Installation: DIN rail mount


Operating Temperature: 0 ~ +70°C
Storage Temperature: -20 ~ +85°C
Ambient Relative Humidity: 10% ~ 90% non-condensing
