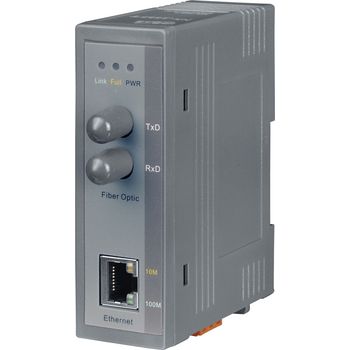

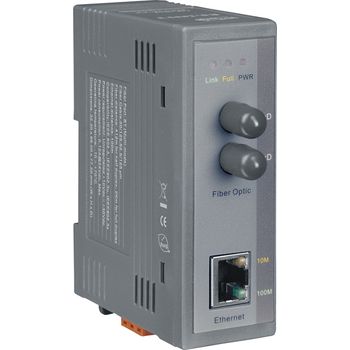

NS-200FT CR ICP DAS Ethernet Converters



Industrial 10/100 BaseT to 100 BaseFT Fiber Optical Converter *For Multi Mode Use* Supports operating temperatures from -25 to 75°C



€ 157,99

(VAT excluded)

€ 192,75(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 192,75

Availability: 15 business days

SKU: 2946

Model: NS-200FT CR

Need Help?

  • Automatic MDI / MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 1.4Gbps high performance memory bandwidth.
  • Frame buffer memory: 512 Kbit
  • Integrated look-up engine with dedicated 1 K unicast MAC addresses.
  • MTBF = 438,000 hours ( Temperature is 25 °)
  • MTBCF = 525,600 hours ( Temperature is 25 °)
  • Supports +10~+30Vdc voltage
  • Reverse Polarity Protection
  • Supports operating temperatures from 0 ~ +70°C
  • DIN rail mount for industrial usage

The NS-200FT is a Ethernet(10/100Base-TX) to Fiber Optic(100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function. The NS-200FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200FT is just 32.30 mm, so it can be used where space is important.


Standards: IEEE802.3, 802.3u, 802.3x
Processing Type: Store & forward wire speed switching - no delays
MAC Addresses: 1024
Memory Bandwidth: 1.4 Gbps
Flow Control: IEEE802.3x flow control, back pressure flow control


RJ45 port: 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection
Fiber Optic port: 100 Base-FX(Multi-mode; ST connector)

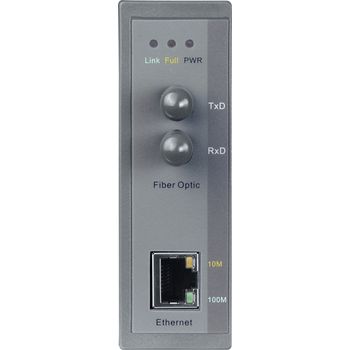

LED Indicators: 10/100M, Link/Act, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation: 1500 Vrms 1 minute
Frame Ground for EMS Protection: Yes
Fiber Optic:
           Multi mode fiber cables:50/125, 62.5/125 or 100/140 μm
           Distance: 2 km, (62.5/125 μ mrecommended) for full duplex
           Wavelength: 1300 or 1310nm
           Min. TX Output: -20 dBm
           Max. TX Output: -14 dBm
           RX Sensitivity: -34 to -31 dBm
Ethernet Transmission distance:
           Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
           Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm


Input Voltage Range: +10 ~ +30VDC (Non-isolation)
Power consumption: 0.12A@24VDC, +/- 5% arrowed with 100M Full duplex
LED Indicator: Yes
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes

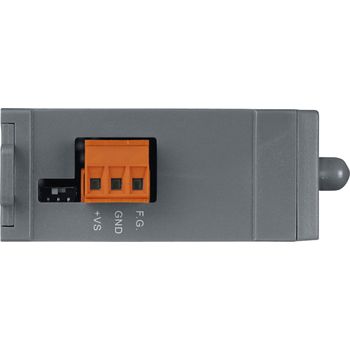

Connection: 3-Pin Removable Terminal Block


Case: Plastic
Flammability: UL 94V-0
Dimensions: 32.30mm x 99.00mm x 77.50mm (W x H x D)

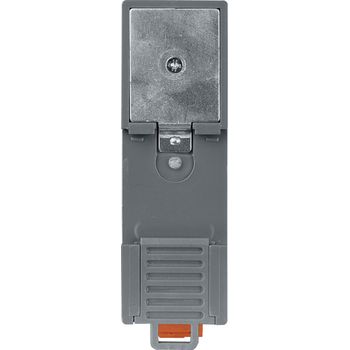

Installation: DIN rail mount


Operating Temperature: 0 ~ +70°C
Storage Temperature: -20 ~ +85°C
Ambient Relative Humidity: 10% to 90% non-condensing
