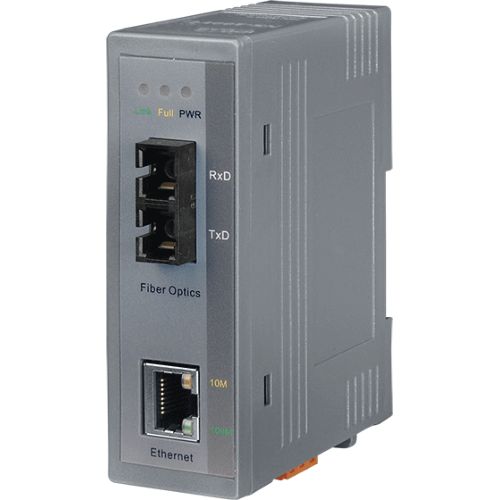

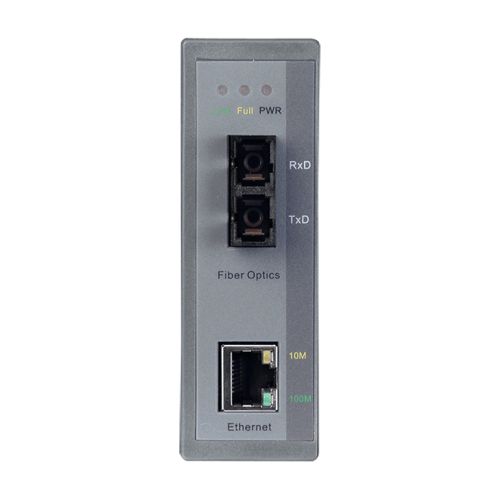

NS-200AFCS-T CR ICP DAS Ethernet Converters

• Automatic MDI/MDI-X crossover for plug-and-play
• Supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure
• flow control
• 1.4 Gbps high performance memory bandwidth
• Frame buffer memory: 256 Kbit
• Integrated look-up engine with dedicated 1024 unicast
• MAC addresses
• Supports +10 VDC ~ +30 VDC
• Reverse Polarity Protection
• Supports operating temperatures from 0 °C ~ +70 °C
• DIN-Rail mount for industrial usage

The NS-200F series is a Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function. The NS-200F series operates at either half or full duplex mode. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200F series is just 33 mm, so it can be used where space is important.

Technology

Standards: IEEE 802.3, 802.3u, 802.3x
Processing Type: Store & forward, wire speed switching
MAC Addresses: 1024
Memory Bandwidth: 1.4 Gbps
Frame Buffer Memory: Memory 256 Kbit
Flow Control: IEEE 802.3x flow control, back pressure flow control

Interface

RJ-45 Port: 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Port: 100 Base-FX
LED Indicators: 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port)
Ethernet Isolation: 1500 Vrms 1 minute
Frame Ground for EMS Protection: Yes
Multi Mode:
                Multi Mode Fiber Cables: 50/125, 62.5/125 or 100/140 μm
                Distance: 2 km, (62.5/125 μm recommended) for full duplex
                Wavelength: 1300 or 1310 nm
                Min. TX Output: -20 dBm
                Max. TX Output: -14 dBm
                RX Sensitivity: -34 ~ -31 dBm
Single Mode:
                Single Mode Fiber Cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
                Distance: 15 km, (9/125 μm recommended) for full duplex
                Wavelength: 1300 or 1310 nm
                Min. TX Output: -15 dBm
                Max. TX Output: -8 dBm
                RX Sensitivity: -36 ~ -31 dBm
Ethernet Transmission Distance:
                 Ethernet: 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω
                 Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Input Voltage Range: +10 VDC ~ +30 VDC (Non-isolation)
Power Consumption: 0.12 A @ 24 VDC, +/-5% arrowed with 100M Full duplex
LED Indicator: Yes
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes

Mechanical

Casing: Plastic (Flammability UL 94V-0)
Dimensions (W x L x H): 33 mm x 85 mm x 107 mm

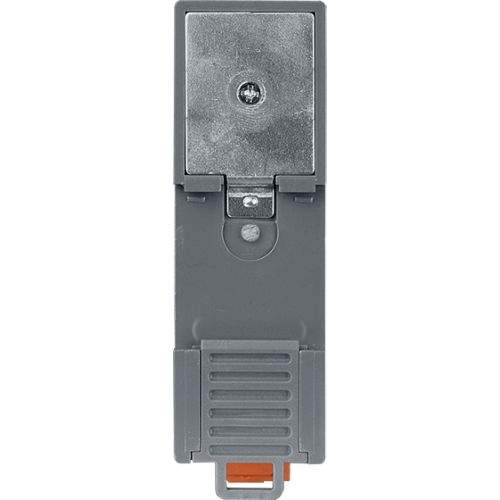

Installation: DIN-Rail

Environmental

Operating Temperature: 0 °C ~ +70 °C
Storage Temperature: -20 °C ~ +85 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
