NS-200AFCS-60T CR ICP DAS Ethernet Converters

The NS-200AF series is a Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function.
NS-200A can work normally from -30 ~ 75°C and accepts a wide voltage range from +12 ~ 48 VDC.

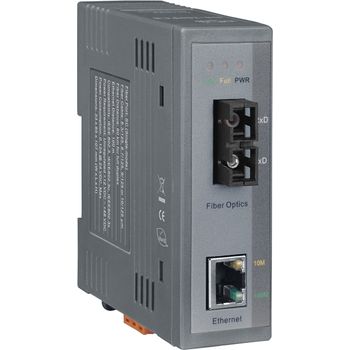

NS-200AFCS-60T CR: Industrial 10/100 Base-T to 100 Base-FX Media Converter; 1 (60 km) single mode, SC connector (RoHS)

• Automatic MDI/MDI-X crossover for plug-and-play
• Supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 1.4 Gbps high performance memory bandwidht
• Frame buffer memory: 256 Kbit
• 1024 MAC addresses
• Supports +10 VDC ~ +30 VDC Reverse Polarity Protection
• Supports operating temperatures from -30°C ~ +75°C
• Slim packaging fits on your DIN-Rail

Technology

Standards: IEEE 802.3, 802.3u, 802.3x
Processing Type: Store & Forward, wire speed switching
MAC Addresses: 1024
Memory Bandwidth: 1.4 Gbps
Frame Buffer Memory: 256 Kbit
Flow Control: IEEE 802.3x flow control, back pressure flow control

Interface

RJ-45 Ports: 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Port: 100 Base-FX
LED Indicators: 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port)
Ethernet Isolation: 1500 Vrms 1 minute
Single Mode:

• Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
• Distance: 60 Km
• Wavelenght: 1300 or 1310 nm
• Min. TX Output: -5 dBm
• Max. TX Output: 0 dBm
• Max. RX Sensivity: -35 dBm
• Max. RX Overload: -5 dBm
• Budget: 30 dBm

Ethernet Transmission Distance (Ethernet): 2-pair UTP/STP Cat.3, 4, 5, EIA/TIA-568 100 Ω
Ethernet Transmission Distance (Fast Ethernet): 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω

Power

Input Voltage Range: +12 VDC ~ +48 VDC (non-isolation)
Power Consumption: 0.12 A @ 24 VDC
LED Indicator: Yes
Protection: Power reverse polarity protection
Frame Ground for EMS Protection: Yes

Mechanical

Casing: Plastic (Flammability UL94V-0)
Dimensions (W x L x H): 33 mm x 85 mm x 107 mm
Installation: DIN-Rail

Environment

Operating Temp.: -30 °C ~ +75 °C
Storage Temp.: -30 °C ~ +85 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
