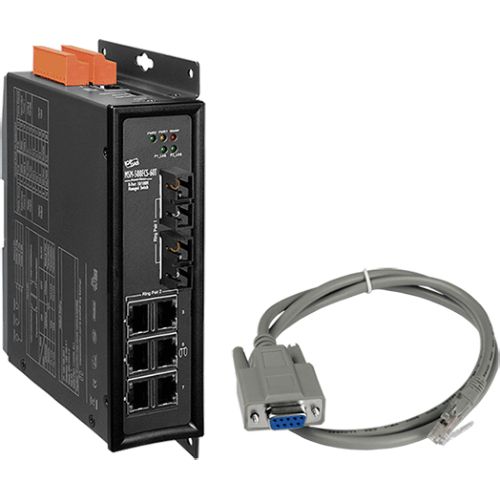

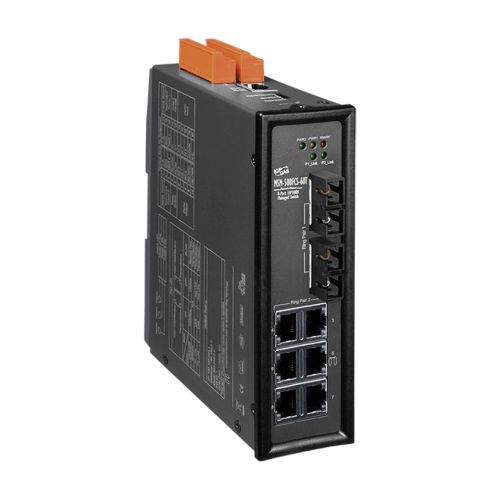

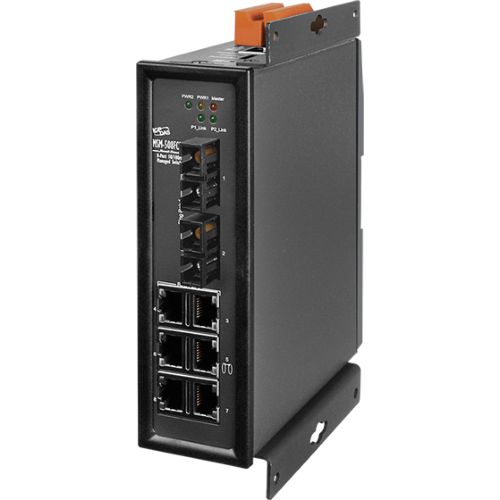

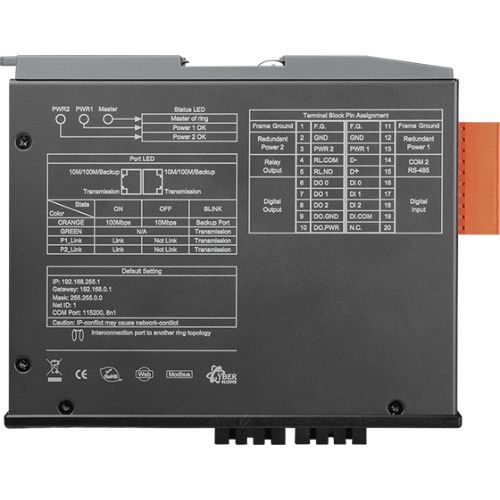

MSM-508FCS-60T CR, 8-port Industrial Ethernet Layer 2 Managed Switch with 2-Fiber Port (Single-mode 60 km, SC Connector)
MSM-508FCS-60T CR
8-port Industrial Ethernet Layer 2 Managed Switch with 2-Fiber Port (Single-mode 60 km, SC Connector)
Free Shipping
Features
- Automatic MDI/MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- Supports wide operating temperatures from -30 °C ~ +75 °C
- Built-in Cyber-Ring redundant technique
- Redundant Dual Power Inputs +12 VDC ~ +48 VDC
- Power failure alarm by relay output
- Modbus remote monitoring
- Supports Modbus OPC Server
- Store-and-forward architecture
- Frame buffer memory: 1 Mbit
- 2048 MAC addresses
- 3.2 Gbps high performance memory bandwidth
- Single-mode 60Km, SC Connector Fiber supports
- DIN-Rail Mounting or Wall Mounting
Introduction
The MSM-508FCS-60T is an 8-port Industrial Ethernet Layer 2 Managed Switch with 2-Fiber Port that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. It is perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.
It can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Portbased VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring.
Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. Typically it detects and recovers from a fiber or copper link failure within approximately 20 ms V for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.
MSM-508F provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the it's power needs. And the relay output facility can deliver warning signal while power or network link failure.
Specifications
LED Indicators
Status: 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port)
Ethernet
Ports: 6 x RJ-45, 10/100Base-TX
Standards: IEEE 802.3, 802.3u and 802.3x
Processing Type: Store & forward, wire speed switching
MAC Table: 2048
Memory Bandwidth: 3.2 Gbps
Frame Buffer Memory: 1 Mbit
Flow Control: IEEE 802.3x flow control, back pressure flow control
Protocol: VLAN, QoS, Port Trunk, SMTP, TELNET
Redundant Strategy: STP, Ring (ICP DAS)
Isolation: 1500 Vrms 1 minute
DIP Switch: Yes, Normal Run / Repair Mode
Fiber
Ports: 2-port 100 Base-FX
SC connector
Mode: Single-Mode
Fiber Cable: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 60 km, (9/125 μm recommended) for full duplex
Wavelength: 1300 or 1310 nm
TX Output: -5 dBm Min.
0 dBm Max.
RX Sensitivity: -35 dBm
Digital Input
Channels: 3
Type: Wet Contact
ON Voltage Level: +19 VDC ~ +30 VDC
OFF Voltage Level: +11 VDC Max.
Digital Output
Channels: 3
Type: Open Collector
Sink/Source (NPN/PNP): Sink (NPN)
Load Current: 30V/100 mA Max.
COM Ports
Ports: 1 x RS-232 (Console)
1 x RS-485
Power
Reverse Polarity Protection: Yes
Input Range: +12 VDC ~ +48 VDC Redundant Dual Inputs (Non-isolated)
Redundant Power Inputs: Yes
Consumption: 0.3 A @ 24 VDC
Alarm Output: Yes,Relay 2 A @ 30 VDC
Mechanical
Casing: Metal
Dimensions (mm): DIN-rail mounting: 47 x 175 x 142 (W x L x H)
Wall mounting: 51 x 190 x 142 (W x L x H)
Installation: DIN-rail mounting or wall mounting
Ingress Protection Rating: IP30
Environment
Operating Temperature: -30 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 10 ~ 90% RH, non-condensing
