MN-SERVO-DAA-EC CR ICP DAS Motionnet

MN-SERVO-DAA-EC CR ICP DAS

MN-SERVO-DAA-EC CR ICP DAS

MN-SERVO-DAA-EC CR

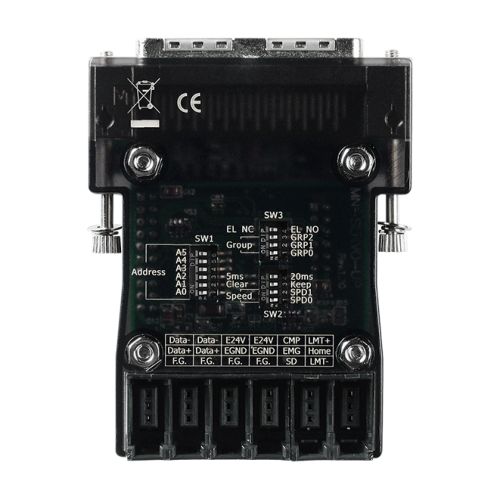

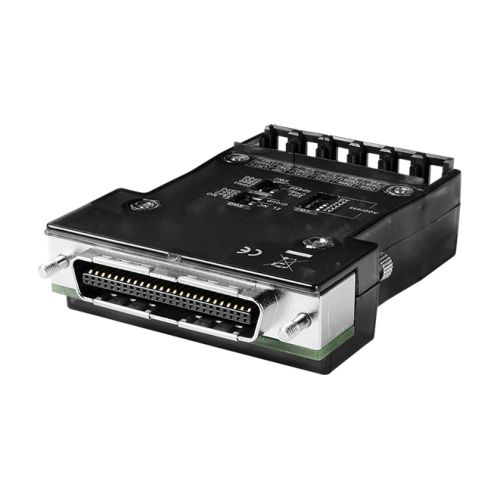

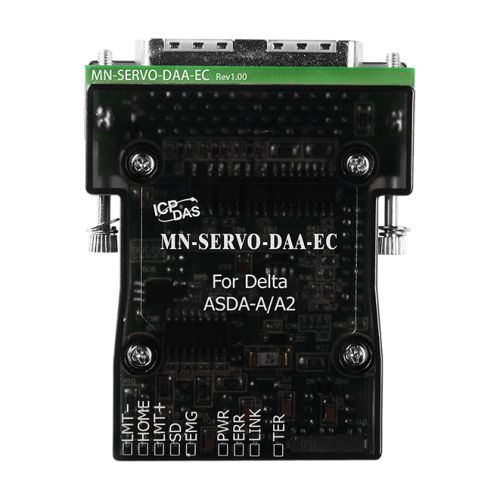

Distributed Motionnet Single-axis Motion Control Module with e-CON Mini-Clamp connector for Delta ASDA-A/A2

Quantity:

Price

€ 297,93

(VAT excluded)

€ 363,47(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 363,47

Availability: 15 business days

SKU: 110628

Model: MN-SERVO-DAA-EC CR

Need Help?


  • Maximum communication speed: 20 Mbps
  • Maximum pulse output frequency: 6.6 Mpps
  • Control up to 64 axes / line
  • Multi-axes linear interpolation function
  • 2-axes circular interpolation function
  • T/S-curve acceleration and deceleration
  • Change speed and position on the fly
  • Slow down sensor, Home sensor, positive and negative limit sensors for each axis
  • Software limit and compare trigger output
  • Three-way isolation for power, communication and I/O. (Provide better noise immunity and device protection)
  • The -EC module equipped with Mini-Clamp connector provide for an easier and debris-free wire termination process.

INTRODUCTION

The MN-SERVO-xxx-EC series is used to expand the number of axes for distributed motion control on a Motionnet field bus. These extension slave modules can be directly connect to the servo driver and are serially connected to the controller using a simple and affordable Cat.5 LAN cable, reducing the amount of wiring required between the drivers and the controller, making this a highly suitable solution for integrated machine automation applications.

After the module is connected to the servo driver, all you need to do is connect a serial LAN cable between the modules. One serial line can support up to 64 single-axis modules. ICP DAS provides a variety of motion control modules suitable for a range of brands of servo drivers, such as Mitsubishi MELSERVO-J3/J4, Yaskawa Sigma II/III/V, Panasonic MINAS A4/A5, Delta ASDA-A/A2 and Teco TSTA-A/A+.

SPECIFICATIONS

General
Communication Speed: 2.5 M, 5 M, 10 M, 20 Mbps
Maximum Pulse output frequency: 6.6 Mpps
Pulse Output Interface: OUT/DIR, CW/CCW
Pulse Output Counter: 28-bit
Encoder Interface: CW/CCW, A/B phase
Encoder Counter: 28-bit
Speed Profile: Trapezoidal/S Shaped Acc/Dec Driving
Home Mode: 13 Types
Mechanical Switch Input: LMT+, LMT-, HOME, SD, EMG
Servo I/O Interface: Input: ALM, RDY, INP
 Output: SVON, ERC, ALM_RST

High-Speed Position Compare Output: 5V TTL or 24V open collector
LED Diagnostics: Communication state (Link, Error)
 Mechanic Switch Input
 Internal 3.3 V Power
 Termination Resistor Switch

Operating Temp.: 0 °C ~ + 60 °C
Storage Temp.:   -20 °C ~ +80 °C
Operating Humidity: 10 ~ 85%, Non-condensing
Storage Humidity: 5 ~ 95%, Non-condensing
