MN-3257 CR ICP DAS Motionnet

MN-3257 CR ICP DAS

MN-3257 CR

Distributed Motionnet 32-ch Isolated Digital output Module with RJ-45 Connector

Quantity:

Price

€ 230,97

(VAT excluded)

€ 281,78(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 281,78

Availability: 15 business days

SKU: 94163

Model: MN-3257 CR

Need Help?


The MN-3257(T) is an I/O expansion device for Motionnet systems, and is equipped with 32 isolated digital output channels. Each Motionnet communication line can be connected to up to 64 modules, meaning that the I/O can be expanded to 2048 output channels. The communication time required by each MN-325x is 15.1 us. If 64 modules have been connected, signals for 2048 points on 64 modules can be sent and received within 0.97 msec. The update of the I/O status is completed automatically through the Motionnet system at a constant interval, and setting interrupts for specific input points that the customer wants to monitor can help prevent CPU time from being wasted by repetitive polling when there is nothing else for the issuing process to do. The internal flywheel diodes of each output port can be individually connected to different sources of power (each port is comprised of 8 I/O signals).

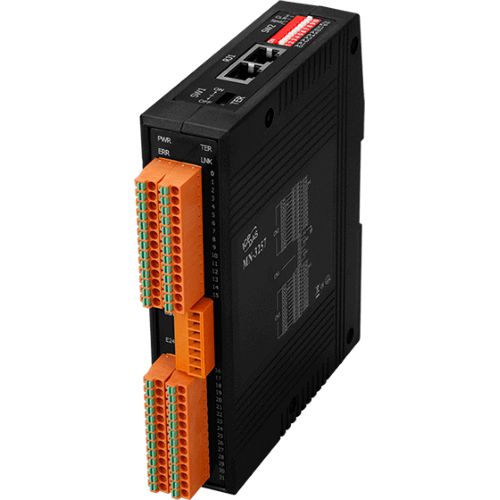

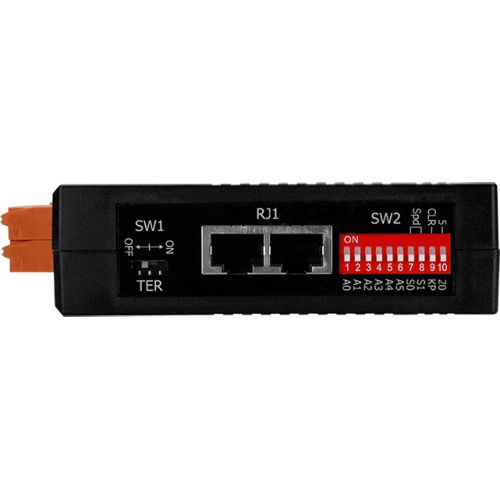

MN-3257 CR:  Distributed Motionnet 32-ch Isolated DO Module with RJ-45 Connector (RoHS)

  • Maximum communication speed: 20 Mbps
  • 32 isolated digital outputs
  • Each Motionnet trasnfer line: connect modules up to 64
  • Designing isolation protection: power, communication, I/O
  • LED diagnostics for communication and I/O status
  • The internal flywheel diode of each output ports can be connect to different sources of power individually
  • High current sinking capability (200mA)

Digital Output

Output Channels: 32
Output Type: Open Collector (Sink), with internal flywheel diode
Load Voltage: +30 VDC max
Load Current: 200 mA max for each channel
Isolation Voltage: 3000 Vrms

Interface

LED Indicators: Communication state (Link, Error) ; Input/output state ; Internal 3.3 V Power ; Termination resistor switch
Communication Speed: Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch
Cyclic scan time: 15.1 µs per device (20 Mbps)
Communication Connector: MN-3257: RJ-45 x 2 ; MN-3257T: 5-pin terminal block
I/O Connector: 13-Pin pluggable Terminal block x4

Power

Voltage Range: 24 VDC (1000 V isolated)
Power Consumption: 2 W max
Protection: Reverse voltage and overcurrent protection
Connection: 7-pin removable terminal block

Mechanical

Case: Plastic
Dimensions (W x L x H): 31 mm x 140 mm x 126.6 mm
Installation: DIN-Rail Mounting

Environmental

Operating Temp.: 0 °C ~ + 60 °C
Storage Temp.: -20 °C ~ +80 °C
Operating Humidity: 10 ~ 85%, Non-condensing
Storage Humidity: 5 ~ 95% RH, Non-condensing
