MN-3254T CR ICP DAS Motionnet


MN-3254T CR

Distributed Motionnet 16-ch Isolated Digital input, 16-ch Isolated Digital output Module with Terminal Block



€ 224,20

(VAT excluded)

€ 273,52(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 273,52

Availability: 15 business days

SKU: 94162

Model: MN-3254T CR

Need Help?

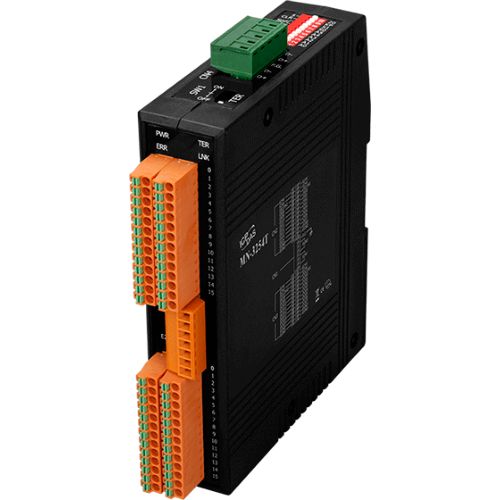

The MN-3254(T) is an I/O expansion device for Motionnet systems, and is equipped with 16 isolated digital input channels and 16 isolated digital output channels. Each Motionnet communication line can be connected to up to 64 modules, meaning that the I/ O can be expanded to up to 1024 input channels and 1024 output channels. The communication time required by each MN-325x is 15.1 us. If 64 modules have been connected, signals for 2048 points on 64 modules can be sent and received within 0.97 msec. The update of the I/O status is completed automatically through the Motionnet system at a constant interval, and setting interrupts for specific input points that the customer wants to monitor can help prevent CPU time from being wasted by repetitive polling when there is nothing else for the issuing process to do. Each input port can be specified as either NPN or PNP (12 ~ 24 V), and the internal flywheel diodes of each output port can be individually connected to different sources of power (each port is comprised of 8 I/O signals).
MN-3254T CR: Distributed Motionnet 16-ch Isolated DI, 16-ch Isolated DO Module with Terminal Block (RoHS)

  • Maximum communication speed: 20 Mbps
  • 16 isolated digital inputs, 16 isolated digital outputs
  • Each Motionnet trasnfer line: connect modules up to 64
  • Designing isolation protection: power, communication, I/O
  • LED diagnostics for communication and I/O status
  • Each port can be specified as NPN or PNP (12 ~ 24 V)
  • The internal flywheel diode of each output ports can be connect to different sources of power individually
  • High current sinking capability (200mA)

Digital Input

Input Channels: 16
Input Type: Sink/Source (NPN/PNP)
On Voltage Level: +10 ~ 30 VDC
Off Voltage Level: +3 VDC max
Input Impedance: 4.7 KΩ
Isolation Voltage: 3000 Vrms

Digital Output

Output Channels: 16
Output Type: Open Collector (Sink), with internal flywheel diode
Load Voltage: +30 VDC max
Load Current: 200 mA max for each channel
Isolation Voltage: 3000 Vrms


LED Indicators: Communication state (Link, Error) ; Input/output state ; Internal 3.3 V Power ; Termination resistor switch

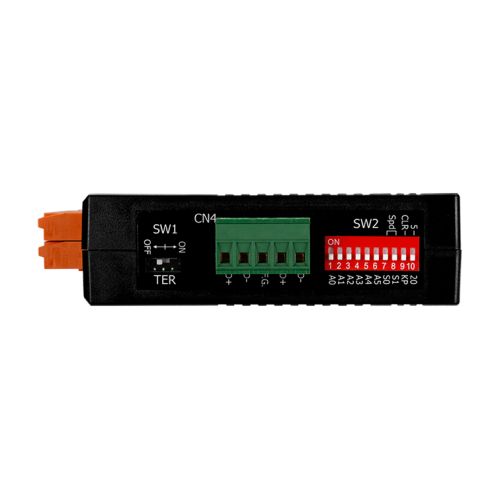

Communication Speed: Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch
Cyclic scan time: 15.1 µs per device (20 Mbps)
Communication Connector: MN-3253: RJ-45 x 2 ; MN-3253T: 5-pin terminal block
I/O Connector: 13-Pin pluggable Terminal block x4


Voltage Range: 24 VDC (1000 V isolated)
Power Consumption: 2 W max
Protection: Reverse voltage and overcurrent protection
Connection: 7-pin removable terminal block


Case: Plastic
Dimensions (W x L x H): 31 mm x 140 mm x 126.6 mm
Installation: DIN-Rail Mounting


Operating Temp.: 0 °C ~ + 60 °C
Storage Temp.: -20 °C ~ +80 °C
Operating Humidity: 10 ~ 85%, Non-condensing
Storage Humidity: 5 ~ 95% RH, Non-condensing
