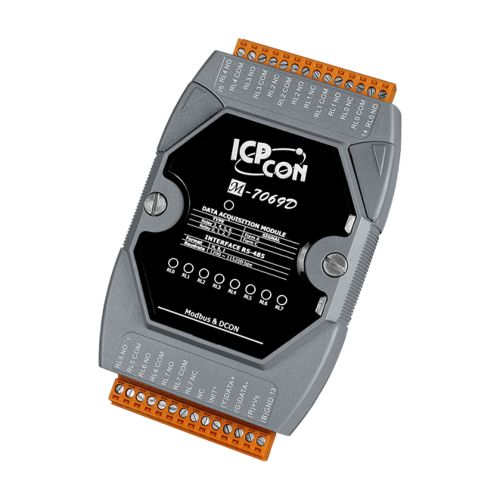

M-7069D-G CR ICP DAS DCON Modbus



The M-7068 provides 4 Form A signal relay output channels and 4 Form C signal relay output channels, while the M-7069 provides 4 Form A power relay output channels and 4 Form C power relay output channels. Both include 8 LED indicators that can be used to monitor the relay output status, and options are provided that allow power-on and safe digital output values to be configured. 4 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments. The M-7068 is the ideal solution for small signal switching, while the M-7069 is the ideal solution for high power applications.



• Building Automation

• Factory Automation

• Machine Automation

• Remote Maintenance

• Remote Diagnosis

• Testing Equipment



Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)



Type: I/O LED Indicator



Intra-module Isolation: 3750 VDC



EFT (IEC 61000-4-4): ±4 kV for 8 Relay and Power Line

±2 kV for RS-485 Port Line

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

±8 kV Air for Random Line

Surge (IEC 61000-4-5): ±3 kV for Power



Status: 1 x Power and Communication

8 x Relay Output



Channels: 8 (4 x Form A, 4 x Form C)

Type: Power Relay

Contact Material: Silver Cadmium Alloy

Contact Rating: Form A:

6 A @ 35 VDC

6 A @ 240 VAC

Form C:

5 A @ 30 VDC

5 A @ 250 VAC

Operate Time: 5 ms (typical)

Release Time: 1 ms (typical)

Electrical Endurance: 1 x 10^5 ops.

Mechanical Endurance: 30 x 10^6 ops.

Surge Strength: 2000 VDC

Power on Value: Yes

Safe Value: Yes



Ports: 1 x RS-485

Baud Rate: 1200 ~ 115200 bps

Data Format: (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)

Protocol: Modbus RTU, DCON



Reverse Polarity Protection: Yes

Input Range: +10 ~ +30 VDC

Consumption: 2.5 W (Max.)



Dimensions (mm): 123 x 72 x 35 (W x L x H)

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
