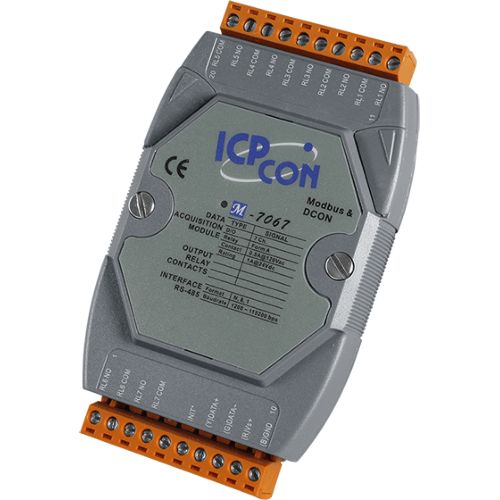

M-7067-G CR ICP DAS DCON Modbus

Relay Output

Channels: 7
Relay Type: Form A relay SPST (N.O.)
Contact Rating:
      AC 120V@0.5A
      DC 24V@1A
Operating Time(Max.): 5ms
Release Time(Min.): 2ms
Surge Strength: 1500VAC
Life Time Mechanical: 20 X 10^6 OPS
Electrical: 100 X 10^3 Full Load

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
7 LEDs as Relay Output indicators (for M-7067D)

Power

Input Voltage Range: 10~30VDC
Power Consumption: 1.5W (max.)(M-7067) / 2.2W (max.)(M-7067D)

Protocol

Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95%, non-condensing
