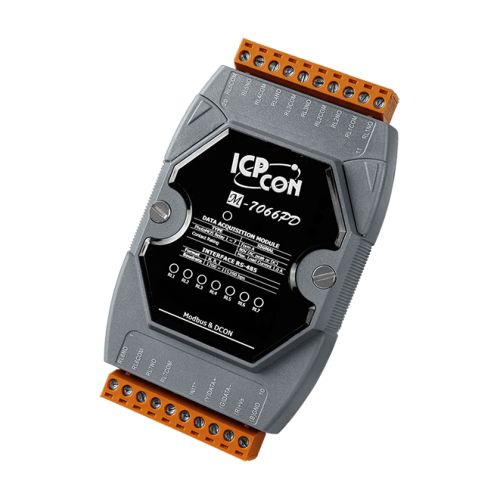

M-7066PD-G CR ICP DAS DCON Modbus



Both the I-7066 and the M-7066P feature seven Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance. There are also no arcing, no bounce, and no switching noise for the PhotoMOS relay. There are options for configuring power-on and safe digital output values, and both the I-7066D and the M-7066PD each include seven LED indicators that are used to display channel status as well as providing 4 kV ESD protection.



Building Automation

Factory Automation

Machine Automation

Remote Maintenance

Remote Diagnosis

Testing Equipment



Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)



Type: I/O LED Indicator



Intra-module Isolation: 2000 VDC



EFT (IEC 61000-4-4): ±4 kV for 8 Relay and Power Line

±2 kV for RS-485 Port Line

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

±8 kV Air for Random Line



Status: 1 x Power and Communication

7 x Relay Output



Channels: 7 (Form A)

Type: PhotoMOS Relay

Contact Rating: Form A:

80 V (AC peck or DC) @ 1 A

0.24 A @ 220 VDC

0.25 A @ 250 VAC

Leakage Current: 1 uA

Operate Time: 5 ms (Max.)

Release Time: 0.2 ms (Max.)

Electrical Endurance: Long Life, And No Arcing, No Bounce, And No Switching Noise

Power on Value: Yes, Programmable

Safe Value: Yes, Programmable



Ports: 1 x RS-485

Baud Rate: 1200 ~ 115200 bps

Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)

Protocol: Modbus RTU, DCON



Reverse Polarity Protection: Yes

Input Range: +10 ~ +30 VDC

Consumption: 0.9 W



Dimensions (mm): 123 x 72 x 35 (W x L x H)

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
