The I-7063B module provides 8 digital input channels and 3 DC SSR output channels, and the I-7065B provides 4 digital input channels and 5 DC SSR output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of DC SSR technology also eliminates potential for arcing, bounce, and switching noise. The I-7063BD provides 11 LED indicators and the I-7065BD/M-7065BD provides 9 LED indicators that can be used to monitor the status of the digital input and SSR output. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7065B supports both the Modbus RTU and DCON protocols, which can be configured via software.

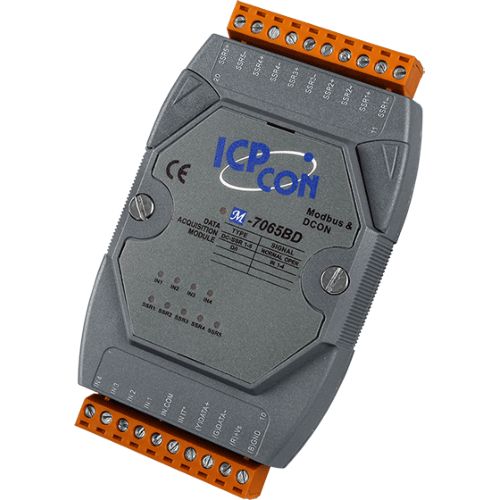

M-7065BD-G CR: M-7065B-G with LED Display (Gray Cover) (ROSH)

• I-7065B(D) and M-7065B(D): 4 Digital Input channel and 5 DC SSR Output channels
• Form A DC Solid State Relay Output
• No Arcing, No Bounce, and No Switching Noise
• Sink-and Source-Type for Digital Input
• Digital Input Channels can be used as 16-bit Counters
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

DC Solid State Relay Output

Channels: 5
Relay Type: DC-SSR (Form A)
Form A DC-SSR:

• Operating Voltage Range: 3 ~ 30 VDC
• Max. Load Current: 1 A
• Leakage Current: 0.1 mA
• Min. Operate Time: 1 ms
• Min. Release Time: 1 ms
• Dielectric Strenght: 3500 VDC
• Electrical Endurance: Long Life, No Arcing, No Bounce, No Switching Noise

Power-on Value: Yes
Safe Value: Yes

Digital Output

Channels: 4
Type: Dry Contact: -- / Wet Contact: Sink/Source
Wet Contact: On Voltage Level: +1 VDC Max. / Off Voltage: +4 ~ 30 VDC
Dry Contact: On Voltage Level: -- / Off Voltage: -- / Effective Distance for Dry Contact: -
Counters: Max. Count: 65535 (16-bit) / Max. Input Frequency: 100 Hz / Min. Pulse Widt: 5ms
Input Impedance: 3 kΩ
Channel-to-Channel Isolation: --
Overvoltage Protection: +/-35 VDC

Communication

Interface: RS-485
Format: (N, 8, 1)(N, 8,2)(E, 8,1)(O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Protocol: Modbus RTU, DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator: Yes, 1 LED as Power/Communication Indicator
I/O LED Indicators: Yes, 9 LEDs as Digital Input/Relay Output Indicators
7-Segment LED Display: --

Isolation

Intra-Module Isolation, Field-to-Logic: 3750 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal, ±8 kV Air for Random Point
EFT (IEC 61000-4-4): ±2 kV for Power Line
Surge (IEC 61000-4-5): --

Power

Reverse Polarity Protection: Yes
Input Range: 10 ~ 30 VDC
Consumption: 1.0 W

Mechanical

Dimensions (W x L x H): 72 mm x 123 mm x 35 mm
Installation: DIN-Rail or Wall Mounting

Environment

Operating Temp.: -25 ~ +75°C
Storage Temp.: -40 ~ +85°C
Humidity: 10 ~ 95% RH, Non-condensing
