features and benefits

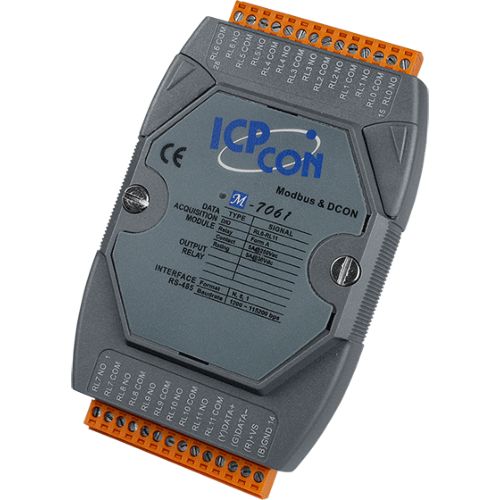

The M-7061/M-7061D provides 12 power relay output channels and The M-7067/M-7067D provides 7 signal relay output channels.
The M-7061D provides 12 LED indicators and The M-7067D provides 7 LED indicators for channel status monitoring.
The M-7061(D)/M-7067(D) supports Modbus RTU and DCON protocols, which can be configured via software.
There are also options for configuring power-on and safe values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
The M-7067(D) is the ideal solution for small signal-switching applications, while The M-7061(D) is the perfect solution for high-power applications.
- 12 Form A Power Relay Outputs
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Relay Output| Channels | 12 (Form A) |
|---|
| Type | Power Relay |
|---|
| Contact Material | Silver TinAlloy |
|---|
| Contact Rating | 5 A @ 250 VAC | 5 A @ 30 VDC |
|---|
| Operate Time | 10 ms |
|---|
| Release Time | 5 ms |
|---|
| Electrical Endurance | 1 x 10^5 ops. |
|---|
| Mechanical Endurance | 2 x 10^7 ops. |
|---|
| Power on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 1.7 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
