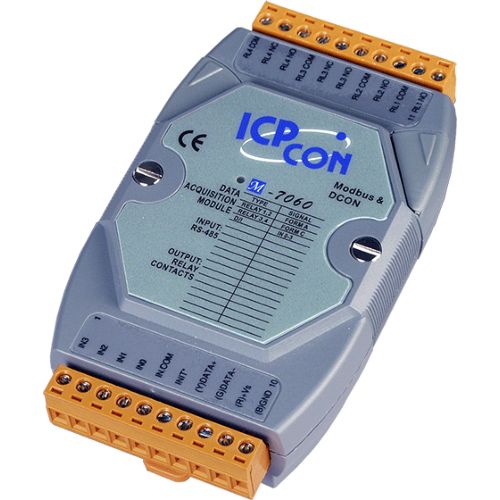

M-7060-G CR
4-ch Isolated (Wet, 4~30 VDC) Digital input and 4-ch Signal Relay Module using DCON and Modbus Protocols (Gray Cover)
Digital Input
Channels: 4
Input Type: Sink or Source
Off Voltage Level: +1V max.
On Voltage Level: +4V to +30V
Input Impedance: 3KOhm , 0.5W
Counters:
Channels: 4
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Optical Isolation: 3750 Vrms
Relay Output
Channels: 4
Relay Type: Form A x2, Form C x2
Contact rating:
AC: 125V @0.6A
DC: 30V @2A; 110V @0.6A
Operating Time(typical): 3ms
Release Time(typical): 2ms
Total Switching Time: 10ms
Surge Strength: 500VAC(50/60Hz)
Insulation resistance: 1000MW min. at 500Vdc
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
4 LEDs as Digital Input indicators and 4LEDs as Relay Output indicators (for M-7060D)
Power
Input Voltage Range: 10~30VDC
Power Consumption: 1.3 W (max.)(M-7060) / 1.9 W (max.)(M-7060D)
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95%, non-condensing
