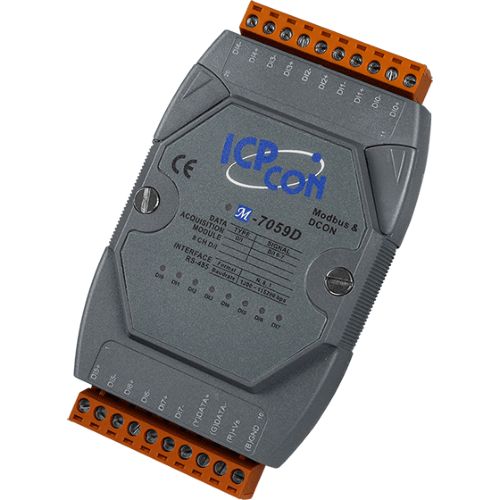

M-7059D-G CR, 8-ch Isolated (Wet, 10~80 VAC/±15 ~ ±80 VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
M-7059D-G CR
8-ch Isolated (Wet, 10~80 VAC/±15 ~ ±80 VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
Features
- AC/DC Digital Input
- 8 Differential Input Channels
- All Channels Can be used as 16-bit Counters
- Channel-to-Channel Isolation
- ±4 kV ESD Protection
- 3750 VDC Isolation Voltage
- Dual Watchdog
Introduction
The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel Photocoupleisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Display
Type: I/O LED Indicator
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status: 1 x Power and Communication
Digital Input/Counter
Channels: 8
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: 10 ~ 80 VAC
±15 ~ ±80 VDC
OFF Voltage Level: 3 VAC Max.
±3 VDC Max.
Max. Counts: 65535 (16-bit)
Min. Pulse Width: 5 ms
Input Impedance: 10 kΩ
Overvoltage Protection: 120 VAC/VDC Max.
Channel-to-Channel Isolation: Yes, ±2 kV
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1 W
Mechanical
Dimensions (mm): 123 x 72 x 35 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
