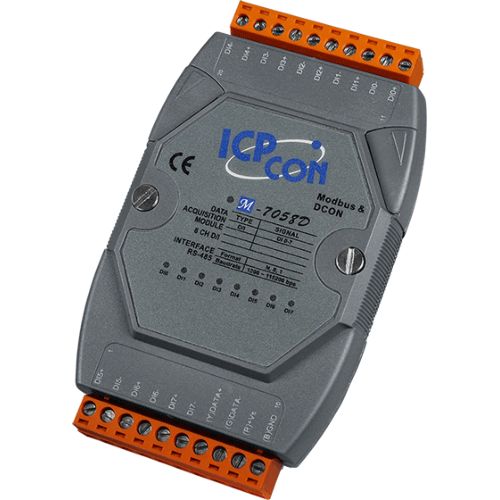

M-7058D-G CR, 8-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
M-7058D-G CR
8-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
Features
- AC/DC Digital Input
- 8 Differential Input Channels
- All Channels Can be used as 16-bit Counters
- Channel-to-Channel Isolation
- ±4 kV ESD Protection
- 3750 VDC Isolation Voltage
- Dual Watchdog
Introduction
The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel Photocoupleisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Display
Type: I/O LED Indicator
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status: 1 x Power and Communication
8 x Digital Input
Digital Input/Counter
Channels: 8
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: 80 ~ 250 VAC
±80 ~ ±250 VDC
OFF Voltage Level: 30 VAC Max.
±30 VDC Max.
Max. Counts: 65535 (16-bit)
Min. Pulse Width: 5 ms
Input Impedance: 68 kΩ
Overvoltage Protection: 300 VAC/VDC Max.
Channel-to-Channel Isolation: Yes, ±2 kV
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1 W
Mechanical
Dimensions (mm): 123 x 72 x 35 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
