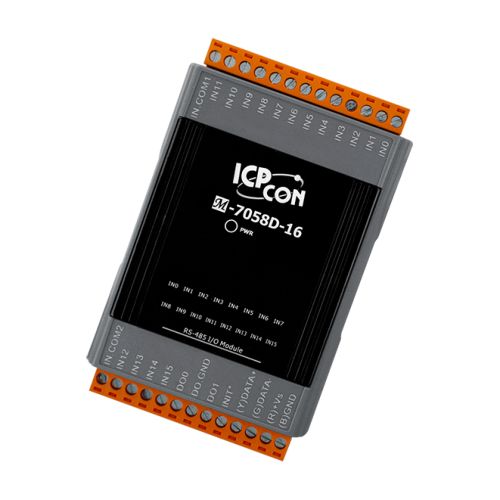

M-7058D-16-G CR, 16-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250 VDC) Digital input and 2-ch (Sink, NPN) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
M-7058D-16-G CR
16-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250 VDC) Digital input and 2-ch (Sink, NPN) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
Features
- AC/DC Digital Input: 16 Channels
- Digital Output: 2 Channels
- All Digital Input Channels Can be used as 16-bit Counters
- Channel-to-Channel Isolation
- ±4 kV ESD Protection
- 3750 VDC Isolation Voltage
- Dual Watchdog
Introduction
The M-7058D-16 module provides 16 channels for AC/DC digital input, each of which features channel to channel photocouple isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters. The module has 16 LED indicators that can be used to monitor the status of the digital input channels. That also provides ±4 kV ESD, ±4 kV EFT and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5): ±2 kV for Power Line
LED Indicators
Status: 1 x Power and Communication
16 x Digital Input
Digital Input/Counter
Channels: 16
Type: Wet Contact
Sink/Source (NPN/PNP): Sink/Source
ON Voltage Level: 80 ~ 250 VAC
±100 ~ ±250 VDC
OFF Voltage Level: 30 VAC Max.
±30 VDC Max.
Max. Counts: 65535 (16-bit)
Frequency: 100 Hz
Min. Pulse Width: 5 ms
Input Impedance: 150 kΩ
Overvoltage Protection: 300 VAC/VDC Max.
Digital Output
Channels: 2
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +5 ~ +50 VDC
Load Current: 600 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A
Short-circuit Protection: Yes
Power on Value: Yes, Programmable
Safe Value: Yes, Programmable
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 0.4 W
Mechanical
Dimensions (mm): 121 x 76 x 42 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
