M-7058-G CR ICP DAS DCON Modbus

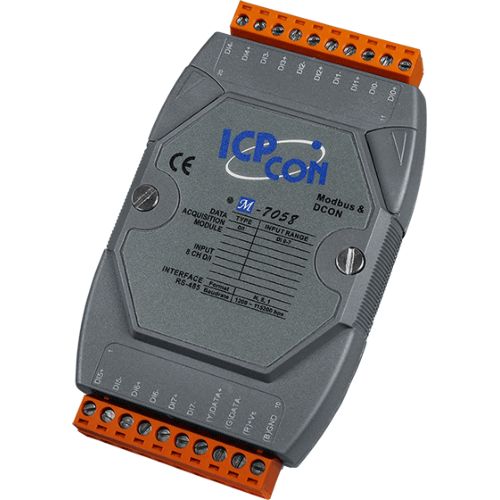

The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel Photocoupleisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.





Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)



Intra-module Isolation: 3750 VDC

EMS Protection:

EFT (IEC 61000-4-4): ±4 kV for Power Line

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

±8 kV Air for Random Point



Status: 1 x Power and Communication



Channels: 8

Type: Wet Contact

Sink/Source (NPN/PNP): Sink/Source

ON Voltage Level: 80 ~ 250 VAC

±80 ~ ±250 VDC

OFF Voltage Level: 30 VAC Max.

±30 VDC Max.

Max. Counts: 65535 (16-bit)

Min. Pulse Width: 5 ms

Input Impedance: 68 kΩ

Overvoltage Protection: 300 VAC/VDC Max.

Channel-to-Channel Isolation: Yes, ±2 kV



Ports: 1 x RS-485

Baud Rate: 1200 ~ 115200 bps

Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)

Protocol: Modbus RTU, DCON



Reverse Polarity Protection: Yes

Input Range: +10 ~ +30 VDC

Consumption: 0.3 W



Dimensions (mm): 123 x 72 x 35 (W x L x H)

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
