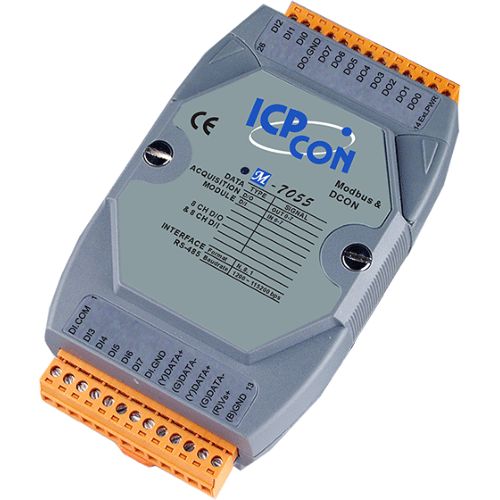

M-7055-G CR ICP DAS DCON Modbus

Digital Input

Channels: 8
Input Type: Dry Contact: Source, Wet Contact: Sink or Source
Dry Contact Level:
       Off Voltage Level: Open
       On Voltage Level: Close to GND
Wet Contact Level:
       Off Voltage Level: +4V max.
       On Voltage Level: +10 V ~ +50 V
Input Impedance: 10K Ohms, 0.5W
Counters:
       Channels: 8
       Max. Counts: 16-bit (65535)
       Max. Input Frequency: 100Hz
       Min. Pulse Width: 5ms
Photo-Isolation: 3750 VDC

Digital Output

Channels: 8, Source, NMOS
Output Voltage: 10 to 40V max
Output Current: 650mA per channel, Direct drive power relay module
Overvoltage Protection: 47 VDC
Overload Protection: Yes
Short-circuit and Overcurrent Protection: Yes, 1.4 A
Thermal Overload trip temperature: 150°C
4KV ESD Protection (IEC 61000-4-2): Yes, contact for each terminal
Intra-module Isolation, Field to Logic: 3750 Vrms

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
8 LEDs as Digital Input indicators and 8 LEDs as Digital Output indicators (for M-7055D)

Power

Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 1.2W (M-7055)/2.2W (M-7055D)

Protocol

Support Modbus and DCON Protocol: Yes

Environment

Operating Temperature: -25 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5 ~ 95% RH, non-condensing
