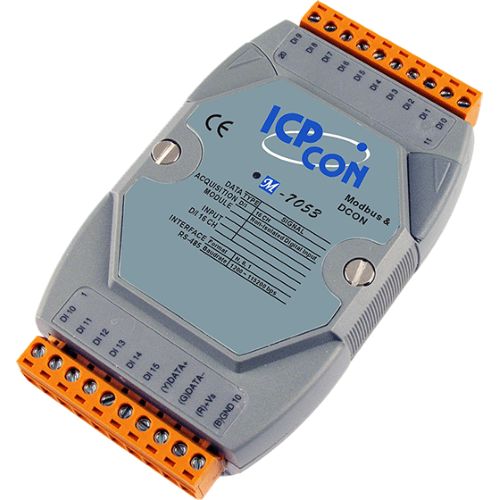

M-7053-G CR, 16-ch Non-isolated (Dry) Digital input Module using DCON and Modbus Protocols (Gray Cover)
M-7053-G CR
16-ch Non-isolated (Dry) Digital input Module using DCON and Modbus Protocols (Gray Cover)
Digital Input
Channels: 16
Input Type: Dry Contact, Source
Off Level: Close to GND
On Leve: Open
Effective Distance: 500m max.
Counters:
Channels: 16
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100Hz
Min. Pulse Width: 5ms
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input: 10~30VDC
Power Consumption: 0.7W
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
