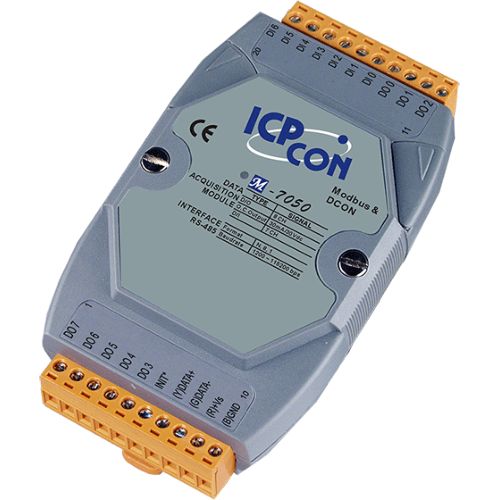

M-7050-G CR, 7-ch Non-isolated (Dry) Digital input and 8-ch Non-isolated (Sink, NPN) Digital output Module using DCON and Modbus Protocols (Gray Cover)
M-7050-G CR
7-ch Non-isolated (Dry) Digital input and 8-ch Non-isolated (Sink, NPN) Digital output Module using DCON and Modbus Protocols (Gray Cover)
Digital Input
Channels: 7
Input Type: Source, non-isolated channel with common ground
Off Voltage Level: +1V max.
On Voltage Level: +4V ~ +30V
Input Impedance: 3K9, 0.3W
Counters:
Channels: 7
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100Hz
Min. Pulse Width: 5ms
Digital Output
Channels: 8, Sink, NPN
Output Voltage: 30V max.
Output Current: 30mA max.
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
7 LEDs as Digital Input indicators, and 8 LEDs as Digital Output indicators (for M-7050D)
Power
Input Voltage Range: 10~30VDC
Power Consumption: 0.4W (M-7050) / 1.1W (M-7050D)
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
