M-7046-G CR

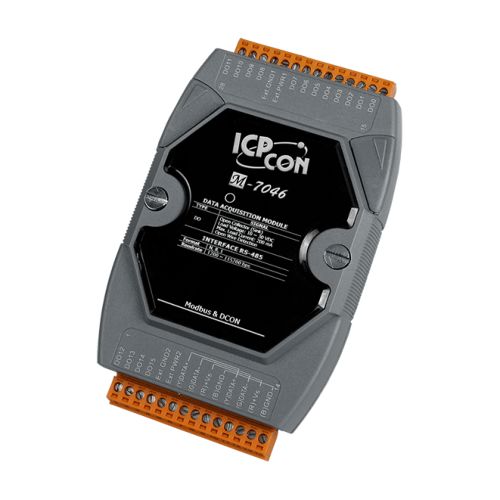

15-ch Isolated (Wet, 3.5~50 VDC) Digital input Module using DCON and Modbus Protocols (Gray Cover)
- Sink- or Source-type Digital Input
- Photocouple Isolation
- All Channels can be used as 16-bit Counters
- ±8 kV ESD Protection
- ±4 kV EFT Protection
- ±3 kV Surge Protection
- 5000 VDC Isolation Voltage
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75°C
INTRODUCTION
The M-7046 is a 15-channel Digital Input module. Each channel features photocoupler isolation and can be used as a 16-bit counter. In addition, the Digital Input type can be selected as either sink or source via wire connections. The M-7046D module includes 15 LED indicators that can be used to monitor the status of the DI channels. 8 kV ESD protection and 5000 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments, making the M-7046(D) module an ideal solution for Digital Input applications.
APPLICATIONS
All Types of ON/OFF Control
Industrial Automation
Industrial Machinery
Building Automation
Food and Beverage Systems
Semiconductor Fabrication
Control Systems
I/O SPECIFICATIONS
Digital Input/Counter
Channels 15
Type: Dry Contact: Wet
Wet Contact: Sink/Source
Wet Contact: ON Voltage Level: +3.5 ~ +50 VDC
OFF Voltage Level: +1 VDC Max.
Dry Contact: ON Voltage Level: -
OFF Voltage Level: -
Effective Distance
for Dry Contact: -
Counters: Max. Count: 65535 (16-bit)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Input Impedance: 10 kΩ
Channel-to-Channel Isolation: -
Overvoltage Protection: ±70 VDC
SYSTEM SPECIFICATIONS
Communication
Interface: RS-485
RS-485 Bias Resistor: No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format: (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
Baud Rate: 1200 to 115200 bps
Protocol: Modbus RTU, DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator: Yes, 1 as Power/Communication Indicator
I/O LED Indicator: -
7-Segment LED Display: -
Isolation
Intra-Module Isolation, Field-to-Logic; 5000 VDC
EMS Protection
ESD (IEC 61000-4-2): ±8 kV Contact for each Terminal
±16 kV Air for Random Point
EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±3 kV for Power
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 0.2 W
Mechanical
Dimensions (L x W x H): 123 mm x 72 mm x 35 mm
Installation: DIN-Rail or Wall Mounting
Environment
Operating Temperature: -25 to +75°C
Storage Temperature: -40 to +85°C
Humidity: 10 to 95% RH, Non-condensing
