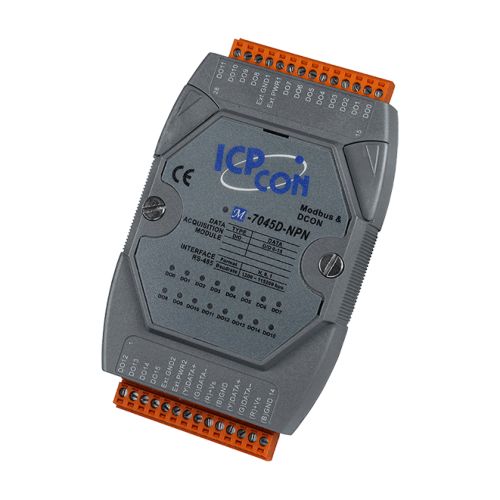

M-7045D-NPN-G CR, 16-ch Isolated (Sink, NPN, 3.5~50 VDC) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
M-7045D-NPN-G CR
16-ch Isolated (Sink, NPN, 3.5~50 VDC) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
Features
- Sink-type Digital Output Channels with Overload Protection
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Short Circuit Protection
- Overload and Overvoltage Protection
- 3750 VDC Intra-module Isolation
- 4 kV ESD and EFT Protection
- 3 kV Surge Protection for Power Input
- Dual Watchdog
Introduction
All modules in the 7045 series offer 16 digital output channels, each of which features Photocouple isolation. The I-7045(D)/M-7045(D) supports sourcetype output, while the I-7045(D)-NPN/M-7045(D)-NPN supports sink-type, and both are equipped with short circuit protection. There are options to enable both power-on and safe values, and 16 LED indicators that can be used to monitor the status of the digital output channels. 4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard. The M-7045(D)/M-7075(D)-NPN has the same hardware specifications as the I-7045(D)/I-7045(D)-NPN, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Display
Type: I/O LED Indicator
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for the 16 DO channels and Power,
±2 kV for the RS-485 Port
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5): ±3 kV for Power Line
LED Indicators
Status: 1 x Power and Communication
16 x Digital Output
Digital Output
Channels: 16
Type: Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +3.5 ~ 50 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A (with Short-circuit Protection)
Short-circuit Protection: Yes
Power on Value: Yes
Safe Value: Yes
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 to 115200 bps
Data Format: N, 8, 1
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1.2 W
Mechanical
Dimensions (mm): 123 x 72 x 35 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
